Product name "EQUIPTOP" Automatic (Digital Type)
Performance of work table ----
Longitudinal movement table
(No paragraph table speed)		 ----
ESG-618ASDII
Table Size 152x460mm(6x18")
Longitudinal
Movement of Table 		60HZ,5-28m/min,50HZ,5-23m/min

CONTROL PANEL

Vertical feed powered by double motors High efficiency AC motor for rapid up / down. Stepping motor for micro downfeed positioning and slow up / down. Quick digit output feedback by encoder.
Display for position of axis Y to show the present position of spindle. The digit display is for setting start point, rough grinding volume, start point for finish grinding(finish rginding volume), downfeed volume for finish grinding, target point, rise up point, intermittent spark-out, and spark-out.
Cross transverse travel powered by DC servo motor. Available for step feed and continuous infeed grinding. The speed for dressing wheel is adjustable on the panel
GRINDING PROCEDURES

SPECIFICATIONS

1A:Longitudinal Hydraulic
2A: Longitudinal Hydraulic And Crossfeed Motorized
3A: Longitudinal Hydraulic, Crossfeed Motorized And Rapid Up/Down Motorized.
ASD: Fully Automatic In 3 Axis (X. Y. Z.) With Stepping Motor For Downfeed, And AC Motor For Rapid Up/Down
MODEL
ESG-618ASDII
Table Size   152x460mm(6x18")
Max.grinding length Longitudinal 480mm(19")
Max.grinding width Crosswise 168mm(6 5/8")
Max. distance from table surface to
spindle centerline 		460mm(18")
Standard magnetic chuck size 150x450mm(6x18")
Longitudinal movement of table Max. travel, hydraulic 480mm(19")
Max. travel, manual 510mm(20")
Max. travel, infinitely variable 60HZ,5-28m/min,50HZ,5-23m/min
Cross transverse travel Auto transverse increment 1-10mm(0.04"-0.4")
Max. auto transverse travel 180mm(7")
Max. manual transverse travel 195mm(7 3/4")
Handwheel per revolution 5mm(0.2")
Handwheel per graduation 0.02mm(0.0005")
Wheelhead vertical infeed Automatic in feed 0.001-0.05mm(0.00005-0.002")
Step feed (Jog) 0.001mm(0.00005")
Rapid travel, Approx 250mm/min
Slow travel, Approx 6mm/min
Handwheel revolution 1mm(0.05")
Handwheel graduation 0.005mm(0.0001")
Grinding spindle drive Speed 60HZ,3450 R.P.M.;50HZ,2850 R.P.M.
Power rating 2.0HP
Standard grinding wheel Diameter 203MM(8")
Width 12.7mm(1/2"),MAX. 19mm(3/4")
Bore 31.75mm(1 1/4")
Hydraulic motor Power rating 1HPx6P
Crossfeed motor Power rating 40Wx6P
elevating motor Power rating 40Wx6P
Floor space Total space required 1810x1133x1660mm(71"x45"x65")
Weights Net weight, Approx. 850KGS(1870LBS)
Gross weight, Approx. 1000KGS(2200LBS)
Rated power, Approx   3.0HP
Packing dimensions L x W x H 1980x1420x1930mm(78"x56"x76")




ESG-818ASDII
Table Size 203x460mm
Longitudinal
Movement of Table 		60HZ,5-28m/min,50HZ,5-23m/min

CONTROL PANEL

Vertical feed powered by double motors High efficiency AC motor for rapid up / down. Stepping motor for micro downfeed positioning and slow up / down. Quick digit output feedback by encoder.
Display for position of axis Y to show the present position of spindle. The digit display is for setting start point, rough grinding volume, start point for finish grinding(finish rginding volume), downfeed volume for finish grinding, target point, rise up point, intermittent spark-out, and spark-out.
Cross transverse travel powered by DC servo motor. Available for step feed and continuous infeed grinding. The speed for dressing wheel is adjustable on the panel
GRINDING PROCEDURES

SPECIFICATIONS

1A:Longitudinal Hydraulic
2A: Longitudinal Hydraulic And Crossfeed Motorized
3A: Longitudinal Hydraulic, Crossfeed Motorized And Rapid Up/Down Motorized.
ASD: Fully Automatic In 3 Axis (X. Y. Z.) With Stepping Motor For Downfeed, And AC Motor For Rapid Up/Down
MODEL
ESG-818ASDII
Table Size   203x460mm
Max.grinding length Longitudinal 480mm
Max.grinding width Crosswise 228mm
Max. distance from table surface to
spindle centerline 		460mm
Standard magnetic chuck size 200x450mm
Longitudinal movement of table Max. travel, hydraulic 480mm
Max. travel, manual 510mm
Max. travel, infinitely variable 60HZ,5-25m/min,50HZ,5-20m/min
Cross transverse travel Auto transverse increment 1-10mm
Auto constant feeding speed 20-320mm/min
Max. auto transverse travel 235mm
Max. manual transverse travel 250mm
Handwheel per revolution 5mm
Handwheel per graduation 0.02mm
Wheelhead vertical infeed Automatic in feed 0.001-0.05mm
Step feed (Jog) 0.001mm
Rapid travel, Approx 250mm/min
Slow travel, Approx 6mm/min
Handwheel revolution 1mm
Handwheel graduation 0.005mm
Grinding spindle drive Speed 60HZ,3450 R.P.M.;50HZ,2850 R.P.M.
Power rating 2.0HP
Standard grinding wheel Diameter 203mm
Width 12.7mm, MAX. 19mm
Bore 31.75mm
Hydraulic motor Power rating 1HPx6P
Crossfeed motor Power rating 40Wx6P
elevating motor Power rating 40Wx6P
Floor space Total space required 1810x1285x1680mm
Weights Net weight, Approx. 1205KGS
Gross weight, Approx. 1375KGS
Rated power, Approx   3.0HP
Packing dimensions L x W x H 1890x1630x1930mm


ESG-1020ASDII
Table Size 254x508mm
Longitudinal
Movement of Table 		60HZ,5-25m/min,50HZ,5-20m/min

CONTROL PANEL

Vertical feed powered by double motors High efficiency AC motor for rapid up / down. Stepping motor for micro downfeed positioning and slow up / down. Quick digit output feedback by encoder.
Display for position of axis Y to show the present position of spindle. The digit display is for setting start point, rough grinding volume, start point for finish grinding(finish rginding volume), downfeed volume for finish grinding, target point, rise up point, intermittent spark-out, and spark-out.
Cross transverse travel powered by DC servo motor. Available for step feed and continuous infeed grinding. The speed for dressing wheel is adjustable on the panel.
GRINDING PROCEDURES

SPECIFICATIONS

1A:Longitudinal Hydraulic
2A: Longitudinal Hydraulic And Crossfeed Motorized
3A: Longitudinal Hydraulic, Crossfeed Motorized And Rapid Up/Down Motorized.
ASD: Fully Automatic In 3 Axis (X. Y. Z.) With Stepping Motor For Downfeed, And AC Motor For Rapid Up/Down
MODEL
ESG-1020ASDII
Table Size   254x508mm
Max.grinding length Longitudinal 520mm
Max.grinding width Crosswise 280mm
Max. distance from table surface to
spindle centerline 		Standard column:500mm; Optional high column:600mm
Standard magnetic chuck size 250x500mm
Longitudinal movement of table Max. travel, hydraulic 580mm
Max. travel, manual 620mm
Max. travel, infinitely variable 60HZ,5-25m/min,50HZ,5-20m/min
Cross transverse travel Auto transverse increment 1-13mm
Auto constant feeding speed 20-320mm/min
Max. auto transverse travel 270mm
Max. manual transverse travel 300mm
Handwheel per revolution 5mm
Handwheel per graduation 0.02mm
Wheelhead vertical infeed Automatic in feed 0.001-0.05mm
Step feed (Jog) 0.001mm
Rapid travel, Approx 150mm/min
Slow travel, Approx 6mm/min
Handwheel revolution 1mm
Handwheel graduation 0.005mm
Grinding spindle drive Speed 60HZ,3450 R.P.M.;50HZ,2850 R.P.M.
Power rating 3.0HP
Standard grinding wheel Diameter 203mm
Width 19mm, MAX. 25mm
Bore 31.75mm
Hydraulic motor Power rating 2.0HPx6P
Crossfeed motor Power rating 80Wx6P
elevating motor Power rating 80Wx6P
Floor space Total space required 2400x1450x1750mm
Weights Net weight, Approx. 1810KGS
Gross weight, Approx. 2160KGS
Rated power, Approx   5 1/5HP
Packing dimensions L x W x H 2480x2060x2100mm


ESG-1224ASDII
Table Size 300x600mm
Longitudinal
Movement of Table 		60HZ,5-25m/min,50HZ,5-20m/min

CONTROL PANEL

Vertical feed powered by double motors High efficiency AC motor for rapid up / down. Stepping motor for micro downfeed positioning and slow up / down. Quick digit output feedback by encoder.
 Display for position of axis Y to show the present position of spindle. The digit display is for setting start point, rough grinding volume, start point for finish grinding(finish rginding volume), downfeed volume for finish grinding, target point, rise up point, intermittent spark-out, and spark-out.
 Cross transverse travel powered by DC servo motor. Available for step feed and continuous infeed grinding. The speed for dressing wheel is adjustable on the panel.
GRINDING PROCEDURES

SPECIFICATIONS

MODEL
ESG-1224ASDII
Table Size   300x600mm
Max.grinding length Longitudinal 600mm
Max.grinding width Crosswise 330mm
Max. distance from table surface to
spindle centerline 		585mm
Standard magnetic chuck size 300x600mm
Longitudinal movement of table Max. travel, hydraulic 650mm
Max. travel, manual 730mm
Max. travel, infinitely variable 60HZ,5-25m/min,50HZ,5-20m/min
Cross transverse travel Auto transverse increment 1-19mm
Auto constant feeding speed 20-320mm/min
Max. auto transverse travel 310mm
Max. manual transverse travel 340mm
Handwheel per revolution 5mm
Handwheel per graduation 0.02mm
Wheelhead vertical infeed Automatic in feed 0.001-0.05mm
Step feed (Jog) 0.001mm
Rapid travel, Approx 150mm/min
Slow travel, Approx 6mm/min
Handwheel revolution 1mm
Handwheel graduation 0.005mm
Grinding spindle drive Speed 60HZ,1750R.P.M.;50HZ,1450R.P.M.
Power rating 5.0HP
Standard grinding wheel Diameter 304mm
Width 31.75mm
Bore 76.2mm
Hydraulic motor Power rating 2.0HPx6P
Crossfeed motor Power rating 80Wx6P
elevating motor Power rating 80Wx6P
Floor space Total space required 2700x1600x1850mm
Weights Net weight, Approx. 1990KGS
Gross weight, Approx. 2290KGS
Rated power, Approx   8 1/4HP
Packing dimensions L x W x H 2480x2140x2100mm


ESG-1228ASDII
Table Size 305x712mm
Longitudinal
Movement of Table 		60HZ,5-25m/min,50HZ,5-20m/min

CONTROL PANEL

Vertical feed powered by double motors High efficiency AC motor for rapid up / down. Stepping motor for micro downfeed positioning and slow up / down. Quick digit output feedback by encoder.
Display for position of axis Y to show the present position of spindle. The digit display is for setting start point, rough grinding volume, start point for finish grinding(finish rginding volume), downfeed volume for finish grinding, target point, rise up point, intermittent spark-out, and spark-out.
Cross transverse travel powered by DC servo motor. Available for step feed and continuous infeed grinding. The speed for dressing wheel is adjustable on the panel.
GRINDING PROCEDURES

SPECIFICATIONS

MODEL
ESG-1228ASDII
Table Size   305x712mm
Max.grinding length Longitudinal 712mm
Max.grinding width Crosswise 330mm
Max. distance from table surface to
spindle centerline 		Standard column:630mm; Optional high column:720mm
Standard magnetic chuck size 300x700mm
Longitudinal movement of table Max. travel, hydraulic 760mm
Max. travel, manual 830mm
Max. travel, infinitely variable 60HZ,5-25m/min,50HZ,5-20m/min
Cross transverse travel Auto transverse increment 1-25mm
Auto constant feeding speed 20-320mm/min
Max. auto transverse travel 350mm
Max. manual transverse travel 380mm
Handwheel per revolution 5mm
Handwheel per graduation 0.02mm
Wheelhead vertical infeed Automatic in feed 0.001-0.05mm
Step feed (Jog) 0.001mm
Rapid travel, Approx 150mm/min
Slow travel, Approx 6mm/min
Handwheel revolution 1mm
Handwheel graduation 0.005mm
Grinding spindle drive Speed 60HZ,1750R.P.M.;50HZ,1450R.P.M.
Power rating Standard:5HP; Optional:7 1/2HP,10HP
Standard grinding wheel Diameter 355mm
Width 50mm
Bore 127mm
Hydraulic motor Power rating 3.0HPx6P
Crossfeed motor Power rating 80Wx6P
elevating motor Power rating 1/4Wx6P
Floor space Total space required 2950x1970x2050mm
Weights Net weight, Approx. 3020KGS
Gross weight, Approx. 3520KGS
Rated power, Approx   8 1/2HP(Spindle motor:5HP),11HP(Spindle motor:7.5HP),13 1/2HP(Spindle motor:10HP)
Packing dimensions L x W x H 2500x2290x2220mm


ESG-1232ASDII
Table Size 305x813mm(12x32")
Longitudinal
Movement of Table 		60HZ,5-25m/min,50HZ,5-20m/min
CONTROL PANEL

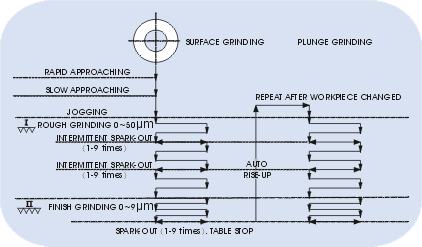

GRINDING PROCEDURES



Maximum cycle downfeed: 9mm(0.45"), can extend to whole vertical(optional accessory-Digital readout set with feedback function) to meet special requirements.
2-step grinding procedure control: Rough grinding 0.001-0.04mm(0.00005"-0.002"); finish grinding 0.001-0.009mm(0.00005"-0.00045")
PRE-SET Spark out: 1-9 times
Automatically table movement stops and wheel head rises up from surface of workpiece, after cycle grinding completed.
Provide plunge & surface grinding modes.

Vertical feed powered by double motors; Stepping motor for Auto-downfeed (Min. increment: 0.001mm, 0.00005"); AC motor for rapid & slow up/down.





SPECIFICATIONS

MODEL
ESG-1232ASDII
Table Size   305x813mm(12x32")
Max.grinding length Longitudinal 813mm(32")
Max.grinding width Crosswise 330mm(13")
Max. distance from table surface to
spindle centerline

Standard column:630mm(24 3/4");

Optional high column:720mm(28 5/16")

Standard magnetic chuck size 300x800mm(11 3/4x31 1/2")
Longitudinal movement of table Max. travel, hydraulic 890mm(35")
Max. travel, manual 930mm(36 1/2")
Max. travel, infinitely variable 60HZ,5-25m/min,50HZ,5-20m/min
Cross transverse travel Auto transverse increment 1~25mm(0.04"-1")
Max. auto transverse travel 350mm(13 3/4")
Max. manual transverse travel 380mm(15")
Handwheel per revolution 5mm(0.2")
Handwheel per graduation 0.02mm(0.001")
Wheelhead vertical infeed Automatic in feed 0.001-0.04mm(0.00005-0.002")
Step feed (Jog) 0.001mm(0.00005")
Rapid travel, Approx 150mm/min
Slow travel, Approx 6mm/min
Handwheel revolution 1mm(0.05")
Handwheel graduation 0.005mm(0.0005")
Grinding spindle drive Speed 60HZ,1750R.P.M.;50HZ,1450R.P.M.
Power rating Standard:5HP; Optional:7 1/2HP,10HP
Standard grinding wheel Diameter 355mm(14")
Width 50mm(2")
Bore 127mm(5")
Hydraulic motor Power rating 3.0HPx6P
Crossfeed motor Power rating 80Wx6P
elevating motor Power rating 1/4HPx6P
Floor space Total space required 3290x1970x2050mm(130x78x81")
Weights Net weight, Approx. 3170KGS(6974LBS)
Gross weight, Approx. 3600KGS(7920LBS)
Rated power, Approx   8 1/2HP(Spindle motor:5HP),11HP(Spindle motor:7.5HP),13 1/2HP(Spindle motor:10HP)
Packing dimensions L x W x H 2700x2290x2200mm(106x90x88")


ESG-1236ASDII
Table Size 406x813mm
Longitudinal
Movement of Table 		60HZ,5-25m/min,50HZ,5-20m/min

CONTROL PANEL
Vertical feed powered by double motors High efficiency AC motor for rapid up / down. Stepping motor for micro downfeed positioning and slow up / down. Quick digit output feedback by encoder.
Display for position of axis Y to show the present position of spindle. The digit display is for setting start point, rough grinding volume, start point for finish grinding(finish rginding volume), downfeed volume for finish grinding, target point, rise up point, intermittent spark-out, and spark-out.
Cross transverse travel powered by DC servo motor. Available for step feed and continuous infeed grinding. The speed for dressing wheel is adjustable on the panel.
GRINDING PROCEDURES

SPECIFICATIONS

MODEL
ESG-1236ASDII
Table Size   305x915mm
Max.grinding length Longitudinal 915mm
Max.grinding width Crosswise 330mm
Max. distance from table surface to
spindle centerline 		Standard column:630mm; Optional high column:720mm
Standard magnetic chuck size 300x900mm
Longitudinal movement of table Max. travel, hydraulic 960mm
Max. travel, manual 1000mm
Max. travel, infinitely variable 60HZ,5-25m/min,50HZ,5-20m/min
Cross transverse travel Auto transverse increment 1-25mm
Auto constant feeding speed 20-320mm/min
Max. auto transverse travel 350mm
Max. manual transverse travel 380mm
Handwheel per revolution 5mm
Handwheel per graduation 0.02mm
Wheelhead vertical infeed Automatic in feed 0.001-0.05mm
Step feed (Jog) 0.001mm
Rapid travel, Approx 150mm/min
Slow travel, Approx 6mm/min
Handwheel revolution 1mm
Handwheel graduation 0.005mm
Grinding spindle drive Speed 60HZ,1750R.P.M.;50HZ,1450R.P.M.
Power rating Standard:5HP; Optional:7 1/2HP,10HP
Standard grinding wheel Diameter 355mm
Width 50mm
Bore 127mm
Hydraulic motor Power rating 3.0HPx6P
Crossfeed motor Power rating 80Wx6P
elevating motor Power rating 1/4Wx6P
Floor space Total space required 3550x1970x2050mm
Weights Net weight, Approx. 3330KGS
Gross weight, Approx. 3700KGS
Rated power, Approx   8 1/2HP(Spindle motor:5HP),11HP(Spindle motor:7.5HP),13 1/2HP(Spindle motor:10HP)
Packing dimensions L x W x H 3000x2290x2220mm


ESG-1632ASDII
Table Size 406x813mm
Longitudinal
Movement of Table 		60HZ,5-25m/min,50HZ,5-20m/min

CONTROL PANEL

Vertical feed powered by double motors High efficiency AC motor for rapid up / down. Stepping motor for micro downfeed positioning and slow up / down. Quick digit output feedback by encoder.
Display for position of axis Y to show the present position of spindle. The digit display is for setting start point, rough grinding volume, start point for finish grinding(finish rginding volume), downfeed volume for finish grinding, target point, rise up point, intermittent spark-out, and spark-out.
Cross transverse travel powered by DC servo motor. Available for step feed and continuous infeed grinding. The speed for dressing wheel is adjustable on the panel.
GRINDING PROCEDURES

SPECIFICATIONS

MODEL
ESG-1632ASDII
Table Size   406x813mm
Max.grinding length Longitudinal 813mm
Max.grinding width Crosswise 410mm
Max. distance from table surface to
spindle centerline 		Standard column:630mm; Optional high column:720mm
Standard magnetic chuck size 400x800mm
Longitudinal movement of table Max. travel, hydraulic 890mm
Max. travel, manual 930mm
Max. travel, infinitely variable 60HZ,5-25m/min,50HZ,5-20m/min
Cross transverse travel Auto transverse increment 1-25mm
Auto constant feeding speed 20-320mm/min
Max. auto transverse travel 430mm
Max. manual transverse travel 460mm
Handwheel per revolution 5mm
Handwheel per graduation 0.02mm
Wheelhead vertical infeed Automatic in feed 0.001-0.05mm
Step feed (Jog) 0.001mm
Rapid travel, Approx 150mm/min
Slow travel, Approx 6mm/min
Handwheel revolution 1mm
Handwheel graduation 0.005mm
Grinding spindle drive Speed 60HZ,1750R.P.M.;50HZ,1450R.P.M.
Power rating Standard:5HP; Optional:7 1/2HP,10HP
Standard grinding wheel Diameter 355mm
Width 50mm
Bore 127mm
Hydraulic motor Power rating 3.0HPx6P
Crossfeed motor Power rating 80Wx6P
elevating motor Power rating 1/4Wx6P
Floor space Total space required 3290x2200x2050mm
Weights Net weight, Approx. 3400KGS
Gross weight, Approx. 4000KGS
Rated power, Approx   8 1/2HP(Spindle motor:5HP),11HP(Spindle motor:7.5HP),13 1/2HP(Spindle motor:10HP)
Packing dimensions L x W x H 2800x2290x2220mm


ESG-1640ASDII
Table Size 406x1020mm
Longitudinal
Movement of Table 		60HZ,5-25m/min,50HZ,5-20m/min

CONTROL PANEL

Vertical feed powered by double motors High efficiency AC motor for rapid up / down. Stepping motor for micro downfeed positioning and slow up / down. Quick digit output feedback by encoder.
Display for position of axis Y to show the present position of spindle. The digit display is for setting start point, rough grinding volume, start point for finish grinding(finish rginding volume), downfeed volume for finish grinding, target point, rise up point, intermittent spark-out, and spark-out.
Cross transverse travel powered by DC servo motor. Available for step feed and continuous infeed grinding. The speed for dressing wheel is adjustable on the panel.
GRINDING PROCEDURES

SPECIFICATIONS

MODEL
ESG-1640ASDII
Table Size   406x1020mm
Max.grinding length Longitudinal 1020mm
Max.grinding width Crosswise 410mm
Max. distance from table surface to
spindle centerline 		Standard column:630mm; Optional high column:720mm
Standard magnetic chuck size 400x1000mm
Longitudinal movement of table Max. travel, hydraulic 1060mm
Max. travel, manual 1100mm
Max. travel, infinitely variable 60HZ,5-25m/min,50HZ,5-20m/min
Cross transverse travel Auto transverse increment 1-25mm
Auto constant feeding speed 20-320mm/min
Max. auto transverse travel 430mm
Max. manual transverse travel 460mm
Handwheel per revolution 5mm
Handwheel per graduation 0.02mm
Wheelhead vertical infeed Automatic in feed 0.001-0.05mm
Step feed (Jog) 0.001mm
Rapid travel, Approx 150mm/min
Slow travel, Approx 6mm/min
Handwheel revolution 1mm
Handwheel graduation 0.005mm
Grinding spindle drive Speed 60HZ,1750R.P.M.;50HZ,1450R.P.M.
Power rating Standard:5HP; Optional:7 1/2HP,10HP
Standard grinding wheel Diameter 355mm
Width 50mm
Bore 127mm
Hydraulic motor Power rating 3.0HPx6P
Crossfeed motor Power rating 80Wx6P
elevating motor Power rating 1/4Wx6P
Floor space Total space required 4020x2200x2050mm
Weights Net weight, Approx. 4000KGS
Gross weight, Approx. 4500KGS
Rated power, Approx   8 1/2HP(Spindle motor:5HP),11HP(Spindle motor:7.5HP),13 1/2HP(Spindle motor:10HP)
Packing dimensions L x W x H 3250x2290x2220mm



2040ASD II


Specifications ：
DESCRIPTIONS / MODEL
ESG-3A2040 / 2040ASD / 2040ASD II
TABLE SIZE 506 x 1020mm

Max, grinding length

Longitudinal 1020mm
Max,grinding width Crosswise 500mm
Max,distance fron table surface to spindle centerline Standard column ： 630mm ；Optional high collumn ： 720mm
standard magnetic chuck size 500 x 1000 mm
Longitudinal movement of table Max,Travel, hydraulic 1060 mm
Max, Travel, manual 1100 mm
Max, Travel, infinitely variable 60HZ , 5-25m/min ； 50HZ , 5-20 m/min
Cross transverse travel ●Auto transverse increment 1-25 mm
Auto constant feeding speed 20 - 320 mm/min
●Max, auto transverse travel 510 mm
Max,manual transverse travel 520 mm
Handwheel per revilution 5 mm
Handwheel per graduation 0.02 mm
Wheelhead vertical infeed ★Automactic infeed ASD 0.001 -0.04 mm / ASD II 0.001 - 0.05 mm
★step feed (jog) 0.001mm
■Rapid travel , Approx 150 mm / min
★Slow travel Approx 6 mm / min
Handwheel revolution MPG 0.1mm(optional) ASD II :Min, display value:0.001 mm (on elevating handwheel)
Handwheel graduation MPG 0.001 mm（optional） ASD II :Min.display value :0.001mm (on elevating handwheel)
Grinding spindle drive Speed 60HZ , 1750 R.P.M. ； 50HZ , 1450R.P.M
Power rating 7.5HP
standard grinding wheel Diameter 355mm
Width 50 mm
Bore 127 mm
Hydraulic motor Power rating 30HZ x 6P
Crossfeed motoe ●Power rating

80W x 6P

Elevating motor ■Power rating 1/4P x 6P
Floor space Totall space required 4500 x 2200 x 2100
Weights Net weight,Approx. 4800KGS
Gross weight,Approx. 5200KGS
Rated power, Approx 11HP
Packing dimensions L X W X H 3500 x 2290 x 2220 mm






ESG-6120ASD II
Table Size 610x1220mm(24"x48")
Longitudinal Movement of Table 1260mm(49.6")

Specifications:
MODEL
ESG-6120ASD II
Table Size   610x1220mm(24"x48")
Max.grinding length Longitudinal 1260mm(49.6")
Max.grinding width Crosswise 610mm(24")
Max. distance from table surface to
spindle centerline 		720mm;850mm(optional)
Standard magnetic chuck size 600x1200x1pieces (23"x47.2")
Longitudinal movement of table Max.Travel hydraulic 1300mm(51.18")
Max.Travel Manual 1350mm(53")
Max. Travel, Infinitely Variable 5~30m/min
Wheelhead Crossfeed Transverse Travel Auto. Transverse Increment (Jog) 1~25mm(0.04"~1")
Auto. Constant Feeding Speed 25~280mm/min(1"~11"/min)
Max. Auto. Transverse Travel 660mm(25.98)
Max. Manual Transverse Tranel 685mm(26.96)
MPG per Revolution 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional)
MPG per Graduation 0.001mm x1; 0.001mm x2; 0.001mm x4 (optional)
Wheelhead vertical infeed (Controlled by Servomotor) Automactic Infeed 1mm(0.05")
Step Feed(Jog)

Jogging downfeed:0.001mm(0.25/10000")

ASD:0.001~0.04

Jogging step increment :0.001~0.05mm(1~25/10000")

ASD II:0.001~0.05

Rapid Travel, Approx 460mm(18")/min
Slow Travel Approx 6mm(0.25")/min
MPG per Revolution (optional) 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional)
MPG per Graduation (optional) 0.001mm x1/ 0.001mm x2 /0.001mm x4 (optional)
Grinding spindle drive Speed 60HZ,1750 R.P.M.
50HZ,1450 R.P.M.
Power rating Standard:10HP/4P(7.5KW) ; optional:15HP/4P(11.25KW);20HP/4P(15KW); 25HP/4P(18.75KW)
Standard grinding wheel Diameter 400mm(16")
Width 50mm(2");65mm(2 1/2")(optional)
Bore 127mm(5")
Hydraulic Motor Power Rating 5HP/6P(5.625KW)
Crossfeed Motor Power Rating DC 400W/Servo
Elevating Motor Power Rating 700W/Servo
Total space require (L x W x H) 4300x3500x2350mm(170"x138"x93")
Weights Net weight 11500KGS (25300LBS)
Gross weight 12500KGS (27500LBS)
Total power, Approx (Standard power Rating) 18HP(13.5KW)
Packing Dimensions L x W x H 4400X2290X2450mm(174"x91"x99")






ESG-6150ASDII
Table Size 610x1524mm(24"x60")
Longitudinal Movement of Table 1560mm(61.5")

Specifications:
MODEL
ESG-6150ASDII
Table Size   610x1524mm(24"x60")
Max.grinding length Longitudinal 1560mm(61.5")
Max.grinding width Crosswise 610mm(24")
Max. distance from table surface to
spindle centerline 		720mm;850mm(optional)
Standard magnetic chuck size 600x750x2pieces (23.6"x29.5")
Longitudinal movement of table Max.Travel hydraulic 1600mm(63")
Max.Travel Manual 1650mm(64.9")
Max. Travel, Infinitely Variable 5~30m/min
Wheelhead Crossfeed Transverse Travel Auto. Transverse Increment (Jog) 1~25mm(0.04"~1")
Auto. Constant Feeding Speed 25~280mm/min(1"~11"/min)
Max. Auto. Transverse Travel 660mm(25.98)
Max. Manual Transverse Tranel 685mm(26.96)
MPG per Revolution 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional)
MPG per Graduation 0.001mm x1; 0.001mm x2; 0.001mm x4 (optional)
Wheelhead vertical infeed (Controlled by Servomotor) Automactic Infeed 1mm(0.05")
Step Feed(Jog)

Jogging downfeed:0.001mm(0.25/10000")

ASD:0.001~0.04

Jogging step increment :0.001~0.05mm(1~25/10000")

ASD II:0.001~0.05

Rapid Travel, Approx 460mm(18")/min
Slow Travel Approx 6mm(0.25")/min
MPG per Revolution (optional) 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional)
MPG per Graduation (optional) 0.001mm x1/ 0.001mm x2 /0.001mm x4 (optional)
Grinding spindle drive Speed 60HZ,1750 R.P.M.
50HZ,1450 R.P.M.
Power rating Standard:10HP/4P(7.5KW) ; optional:15HP/4P(11.25KW);20HP/4P(15KW); 25HP/4P(18.75KW)
Standard grinding wheel Diameter 400mm(16")
Width 50mm(2");65mm(2 1/2")(optional)
Bore 127mm(5")
Hydraulic Motor Power Rating 5HP/6P(5.625KW)
Crossfeed Motor Power Rating DC 400W/Servo
Elevating Motor Power Rating 700W/Servo
Total space require (L x W x H) 4500x3500x2350mm(177"x138"x93")
Weights Net weight 12600KGS (27720LBS)
Gross weight 14500KGS (31900LBS)
Total power, Approx (Standard power Rating) 18HP(13.5KW)
Packing Dimensions L x W x H 4600x2290x2450mm(181"x91"x99")






ESG-6200ASD II
Table Size 610x2060mm(24"x80")
Longitudinal Movement of Table 2060mm(24")

Specifications:
MODEL
ESG-6200ASD II
Table Size   610x2060mm(24"x80")
Max.grinding length Longitudinal 2060mm(24")
Max.grinding width Crosswise 610mm(24")
Max. distance from table surface to
spindle centerline 		720mm;850mm(optional)
Standard magnetic chuck size 600x1000x2pieces (23.6"x29.5")
Longitudinal movement of table Max.Travel hydraulic 2100mm(82.7")
Max.Travel Manual 2150mm(84.6")
Max. Travel, Infinitely Variable 5~30m/min
Wheelhead Crossfeed Transverse Travel Auto. Transverse Increment (Jog) 1~25mm(0.04"~1")
Auto. Constant Feeding Speed 25~280mm/min(1"~11"/min)
Max. Auto. Transverse Travel 660mm(25.98)
Max. Manual Transverse Tranel 685mm(26.96)
MPG per Revolution 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional)
MPG per Graduation 0.001mm x1; 0.001mm x2; 0.001mm x4 (optional)
Wheelhead vertical infeed (Controlled by Servomotor) Automactic Infeed Rough grinding ASD:0.001~0.04mm/ASD II: 0.001~0.05mm; Finish grinding ASD /ASD II: 0.001~0.009mm
Step Feed(Jog)

Jogging downfeed:0.001mm(0.25/10000")

ASD:0.001~0.04

Jogging step increment :0.001~0.05mm(1~25/10000")

ASD II:0.001~0.05

Rapid Travel, Approx 460mm(18")/min
Slow Travel Approx 6mm(0.25")/min
MPG per Revolution (optional) 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional)
MPG per Graduation (optional) 0.001mm x1/ 0.001mm x2 /0.001mm x4 (optional)
Grinding spindle drive Speed 60HZ,1750 R.P.M.
50HZ,1450 R.P.M.
Power rating Standard:10HP/4P(7.5KW) ; optional:15HP/4P(11.25KW);20HP/4P(15KW); 25HP/4P(18.75KW)
Standard grinding wheel Diameter 400mm(16")
Width 50mm(2");65mm(2 1/2")(optional)
Bore 127mm(5")
Hydraulic Motor Power Rating 5HP/6P(5.625KW)
Crossfeed Motor Power Rating DC 400W/Servo
Elevating Motor Power Rating 700W/Servo
Total space require (L x W x H) 5660x3500x2350mm(223"x138"x93")
Weights Net weight 13500KGS (29700LBS)
Gross weight 15000KGS (33000LBS)
Total power, Approx (Standard power Rating) 18HP(13.5KW)
Packing Dimensions L x W x H 5800x2290x2450mm(229"x91"x99")





ESG-8150ASD II
Table Size 810x1550mm(32"x60")
Longitudinal Movement of Table 1550mm(61")

Specifications:
MODEL
ESG-8150ASD II
Table Size   810x1550mm(32"x60")
Max.grinding length Longitudinal 1550mm(61")
Max.grinding width Crosswise 810mm(32")
Max. distance from table surface to
spindle centerline 		720mm;850mm(optional)
Standard magnetic chuck size 800x750x2pieces (23.6"x29.5")
Longitudinal movement of table Max.Travel hydraulic 1600mm(63")
Max.Travel Manual 1650mm(64.9")
Max. Travel, Infinitely Variable 5~30m/min
Wheelhead Crossfeed Transverse Travel Auto. Transverse Increment (Jog) 1~25mm(0.04"~1")
Auto. Constant Feeding Speed 25~280mm/min(1"~11"/min)
Max. Auto. Transverse Travel 860mm(33.85")
Max. Manual Transverse Tranel 885mm(34.85")
MPG per Revolution 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional)
MPG per Graduation 0.001mm x1; 0.001mm x2; 0.001mm x4 (optional)
Wheelhead vertical infeed (Controlled by Servomotor) Automactic Infeed Rough grinding ASD:0.001~0.04mm/ASD II: 0.001~0.05mm; Finish grinding ASD /ASD II: 0.001~0.009mm
Step Feed(Jog)

Jogging downfeed:0.001mm(0.25/10000")

ASD:0.001~0.04

Jogging step increment :0.001~0.05mm(1~25/10000")

ASD II:0.001~0.05

Rapid Travel, Approx 460mm(18")/min
Slow Travel Approx 6mm(0.25")/min
MPG per Revolution (optional) 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional)
MPG per Graduation (optional) 0.001mm x1/ 0.001mm x2 /0.001mm x4 (optional)
Grinding spindle drive Speed 60HZ,1750 R.P.M.
50HZ,1450 R.P.M.
Power rating Standard:10HP/4P(7.5KW) ; optional:15HP/4P(11.25KW);20HP/4P(15KW); 25HP/4P(18.75KW)
Standard grinding wheel Diameter 400mm(16")
Width 50mm(2");65mm(2 1/2")(optional)
Bore 127mm(5")
Hydraulic Motor Power Rating 5HP/6P(5.625KW)
Crossfeed Motor Power Rating DC 400W/Servo
Elevating Motor Power Rating 700W/Servo
Total space require (L x W x H) 4900x3700x2350mm(193"x146"x93")
Weights Net weight 13500KGS (29700LBS)
Gross weight 15000KGS (33000LBS)
Total power, Approx (Standard power Rating) 22HP(13.5KW)
Packing Dimensions L x W x H 4600x2290x2450mm(181"x91"x99")





ESG-8200ASD II
Table Si,ze 810x2050mm(32"x80")
Longitudinal Movement of Table 2050mm(81")

Specifications:
MODEL
ESG-8200ASD II
Table Size   810x2050mm(32"x60")
Max.grinding length Longitudinal 2050mm(81")
Max.grinding width Crosswise 810mm(32")
Max. distance from table surface to
spindle centerline 		720mm;850mm(optional)
Standard magnetic chuck size 800x1000x2pieces
Longitudinal movement of table Max.Travel hydraulic 2100mm(82.5")
Max.Travel Manual 2150mm(84")
Max. Travel, Infinitely Variable 5~30m/min
Wheelhead Crossfeed Transverse Travel Auto. Transverse Increment (Jog) 1~25mm(0.04"~1")
Auto. Constant Feeding Speed 25~280mm/min(1"~11"/min)
Max. Auto. Transverse Travel 860mm(33.85")
Max. Manual Transverse Tranel 885mm(34.85")
MPG per Revolution 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional)
MPG per Graduation 0.001mm x1; 0.001mm x2; 0.001mm x4 (optional)
Wheelhead vertical infeed (Controlled by Servomotor) Automactic Infeed Rough grinding ASD:0.001~0.04mm/ASD II: 0.001~0.05mm; Finish grinding ASD /ASD II: 0.001~0.009mm
Step Feed(Jog)

Jogging downfeed:0.001mm(0.25/10000")

ASD:0.001~0.04

Jogging step increment :0.001~0.05mm(1~25/10000")

ASD II:0.001~0.05

Rapid Travel, Approx 460mm(18")/min
Slow Travel Approx 6mm(0.25")/min
MPG per Revolution (optional) 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional)
MPG per Graduation (optional) 0.001mm x1/ 0.001mm x2 /0.001mm x4 (optional)
Grinding spindle drive Speed 60HZ,1750 R.P.M.
50HZ,1450 R.P.M.
Power rating Standard:15HP/4P(7.5KW) ; optional:20HP/4P(15KW);20HP/4P(15KW); 25HP/4P(18.75KW)
Standard grinding wheel Diameter 400mm(16")
Width 50mm(2");65mm(2 1/2")(optional)
Bore 127mm(5")
Hydraulic Motor Power Rating 5HP/6P(5.625KW)
Crossfeed Motor Power Rating DC 400W/Servo
Elevating Motor Power Rating 700W/Servo
Total space require (L x W x H) 5660x3700x2350mm(223"x146"x93")
Weights Net weight 15000KGS (33000LBS)
Gross weight 16500KGS (36300LBS)
Total power, Approx (Standard power Rating) 22HP(13.5KW)
Packing Dimensions L x W x H 5800x2290x2450mm(229"x91"x99")




ESG-8300ASD II
Table Size 810x3050mm(32"x120")
Longitudinal Movement of Table 3050mm(120")

Specifications:
MODEL
ESG-8300ASD II
Table Size   810x3050mm(32"x120")
Max.grinding length Longitudinal 3050mm(120")
Max.grinding width Crosswise 810mm(32")
Max. distance from table surface to
spindle centerline 		720mm;850mm(optional)
Standard magnetic chuck size 800x1000x3pieces
Longitudinal movement of table Max.Travel hydraulic 3100mm(122")
Max.Travel Manual 3150mm(124")
Max. Travel, Infinitely Variable 5~30m/min
Wheelhead Crossfeed Transverse Travel Auto. Transverse Increment (Jog) 1~25mm(0.04"~1")
Auto. Constant Feeding Speed 25~280mm/min(1"~11"/min)
Max. Auto. Transverse Travel 860mm(33.85")
Max. Manual Transverse Tranel 885mm(34.85")
MPG per Revolution 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional)
MPG per Graduation 0.001mm x1; 0.001mm x2; 0.001mm x4 (optional)
Wheelhead vertical infeed (Controlled by Servomotor) Automactic Infeed Rough grinding ASD:0.001~0.04mm/ASD II: 0.001~0.05mm; Finish grinding ASD /ASD II: 0.001~0.009mm
Step Feed(Jog)

Jogging downfeed:0.001mm(0.25/10000")

ASD:0.001~0.04

Jogging step increment :0.001~0.05mm(1~25/10000")

ASD II:0.001~0.05

Rapid Travel, Approx 460mm(18")/min
Slow Travel Approx 6mm(0.25")/min
MPG per Revolution (optional) 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional)
MPG per Graduation (optional) 0.001mm x1/ 0.001mm x2 /0.001mm x4 (optional)
Grinding spindle drive Speed 60HZ,1750 R.P.M.
50HZ,1450 R.P.M.
Power rating Standard:15HP/4P(7.5KW) ; optional:20HP/4P(15KW);20HP/4P(15KW); 25HP/4P(18.75KW)
Standard grinding wheel Diameter 400mm(16")
Width 50mm(2");65mm(2 1/2")(optional)
Bore 127mm(5")
Hydraulic Motor Power Rating 5HP/6P(5.625KW)
Crossfeed Motor Power Rating DC 400W/Servo
Elevating Motor Power Rating 700W/Servo
Total space require (L x W x H) 7560x3700x2350mm(298"x146"x93")
Weights Net weight 17000KGS (33000LBS)
Gross weight 19000KGS (36300LBS)
Total power, Approx (Standard power Rating) 22HP(13.5KW)
Packing Dimensions L x W x H 7600x2290x2450mm(300"x91"x99")
NOTE: The manufacturer reserves the right to modify the design, specifications, mechanisms, etc., to improve the performances of the machine without notice. All the specifications shown above are just for reference.





General Features:

1.COLUMN:
Enlarged, honeycomb-ribbed column especially suitable for heavy duty grinding.
2.CONSTRUCTION:
Construction of table, saddle and base is casted with high grade iron, strongly ribbed.
3.SPINDLE:

Enlarged spindle set is supported by four preloaded precision angular contact Ball bearings for heavy duty.

4.SLIDEWAYS:
Vertical, cross (double vess) and longitudinal (one vee &one flat) slideways are coated with Turcite-B, provides stable movement and durable accuracy.
5.AUTOMATIC CONTINUOUS LUBRICATION SYSTEM:
All slideways and screws are fully oiled by automatic continuous lubrication system to eliminate wears on slideways & screws.
6.CROSS FEED:
Ball screw for cross travel, powered by DC servo motor.
7.PROXIMITY SWITCH:
Provide built-in-type (hidden) proximity switch, features safe and easy operation.
8.Table speed control:
Presettable hydraulic table speed control allows operator to pre-set speed rate, enable to get same speed rate when engaging hydraulic table every time.

Honeycomb-ribbed Column

Enlarged Spindle Set For 1020, 1224 Series

Ballscrew For Crossfeed Movement

Elevating Transmission System Electrical Box (ASDII)   Easily-adjustable Hidden Proximity Switch (Long And Cross)

Table Speed Control For 1020, 1224 Series Patent double-motor system for vertical up / down. Ac motor (rapid) / Stepping motor (slow auto downfeed)

Optional Accessores:
Electro Magnetic
Chuck 		Inclinable Permanent
Magnetic Chuck 		Swivel Wheel Guard Frequency Changer
Coolant System With Manual Paper Feeding Device Auto Paper Feeding Device With Magnetic Separator Coolant System Dust Collector
Screw Type Parallel Dressing Attachment Concave Convex Forming Dresser
Work Licht(Quartz) Splash Guard
Spare Wheel Flange Manual Parallel
Dresser		 Chuck Control
With Demagnetizer 		Precision Vice
Punch Former Balancing Stand(Double Line) Roller Type
Balancing Stand 		Micro Crossfeed For 618/818 Series
Ratchet Type Electro Parallel Dresser (10/12/16 Series Digital Readout Permanent Magnetic
Chuck 		Manual Pulse Generator For ASDII Type

Coolant System With Magnetic Coolant And Dust Unit



Standare Accessories:

1.Tool box with tools 5.Grinding Wheel 9.Diamond dresser
2.Wheel extract screw & nut 6.Wheel flange 10.Crossfed Ballscrew
3.Balancing arbor 7.Touch-up paint
4.Levelling screw with blocks 8.Auto lubrication system

Copyright © 2009-2011 HO WIN MACHINERY COMPANY
