ESG-618ASD   Table Size 152x460mm(6x18") Longitudinal Movement of Table 60HZ,5-28m/min,50HZ,5-23m/min

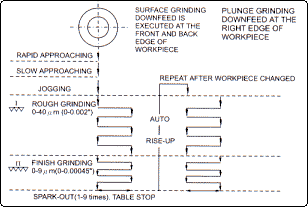

CONTROL PANEL GRINDING PROCEDURES   Plunge & surface modes as standard Vertical feed driven by stepping motor & AC motor Vertical jog feed: 0.001mm(0.00005") Auto-downfeed increment: 0.001-0.04mm(0.00005"-0.002") Max. Auto-downfeed amount: 9mm(0.45") Pre-set spark-out: 1-9 times The wheelhead is raised and the table parks upon completion of the spark-out passes   SPECIFICATIONS 1A:Longitudinal Hydraulic 2A: Longitudinal Hydraulic And Crossfeed Motorized 3A: Longitudinal Hydraulic, Crossfeed Motorized And Rapid Up/Down Motorized. ASD: Fully Automatic In 3 Axis (X. Y. Z.) With Stepping Motor For Downfeed, And AC Motor For Rapid Up/Down MODEL ESG-618ASD Table Size   152x460mm(6x18") Max.grinding length Longitudinal 480mm(19") Max.grinding width Crosswise 168mm(6 5/8") Max. distance from table surface to spindle centerline 460mm(18") Standard magnetic chuck size 150x450mm(6x18") Longitudinal movement of table Max. travel, hydraulic 480mm(19") Max. travel, manual 510mm(20") Max. travel, infinitely variable 60HZ,5-28m/min,50HZ,5-23m/min Cross transverse travel Auto transverse increment 1-10mm(0.04"-0.4") Max. auto transverse travel 180mm(7") Max. manual transverse travel 195mm(7 3/4") Handwheel per revolution 5mm(0.2") Handwheel per graduation 0.02mm(0.0005") Wheelhead vertical infeed Automatic in feed 0.001-0.04mm(0.00005-0.002") Step feed (Jog) 0.001mm(0.00005") Rapid travel, Approx 250mm/min Slow travel, Approx 6mm/min Handwheel revolution 1mm(0.05") Handwheel graduation 0.005mm(0.0001") Grinding spindle drive Speed 60HZ,3450 R.P.M.;50HZ,2850 R.P.M. Power rating 2.0HP Standard grinding wheel Diameter 203MM(8") Width 12.7mm(1/2"),MAX. 19mm(3/4") Bore 31.75mm(1 1/4") Hydraulic motor Power rating 1HPx6P Crossfeed motor Power rating 40Wx6P elevating motor Power rating 40Wx6P Floor space Total space required 1810x1133x1660mm(71"x45"x65") Weights Net weight, Approx. 850KGS(1870LBS) Gross weight, Approx. 1000KGS(2200LBS) Rated power, Approx   3.0HP Packing dimensions L x W x H 1980x1420x1930mm(78"x56"x76")



	ESG-818ASD   Table Size 152x460mm(6x18") Longitudinal Movement of Table 60HZ,5-28m/min, 50HZ,5-23m/min

CONTROL PANEL GRINDING PROCEDURES   Plunge & surface modes as standard Vertical feed driven by stepping motor & AC motor Vertical jog feed: 0.001mm(0.00005") Auto-downfeed increment: 0.001-0.04mm(0.00005"-0.002") Max. Auto-downfeed amount: 9mm(0.45") Pre-set spark-out: 1-9 times The wheelhead is raised and the table parks upon completion of the spark-out passes   SPECIFICATIONS 1A:Longitudinal Hydraulic 2A: Longitudinal Hydraulic And Crossfeed Motorized 3A: Longitudinal Hydraulic, Crossfeed Motorized And Rapid Up/Down Motorized. ASD: Fully Automatic In 3 Axis (X. Y. Z.) With Stepping Motor For Downfeed, And AC Motor For Rapid Up/Down MODEL ESG-818ASD Table Size   203x460mm(8x18") Max.grinding length Longitudinal 480mm(19") Max.grinding width Crosswise 228mm(9") Max. distance from table surface to spindle centerline 460mm(18") Standard magnetic chuck size 200x450mm(8x18") Longitudinal movement of table Max. travel, hydraulic 480mm(19") Max. travel, manual 510mm(20") Max. travel, infinitely variable 60HZ,5-25m/min,50HZ,5-20m/min Cross transverse travel Auto transverse increment 1-10mm(0.04"-0.4") Max. auto transverse travel 235mm(9 1/4") Max. manual transverse travel 250mm(9 3/4") Handwheel per revolution 5mm(0.2") Handwheel per graduation 0.02mm(0.0005") Wheelhead vertical infeed Automatic in feed 0.001-0.04mm(0.00005-0.002") Step feed (Jog) 0.001mm(0.00005") Rapid travel, Approx 250mm/min Slow travel, Approx 6mm/min Handwheel revolution 1mm(0.05") Handwheel graduation 0.005mm(0.0001") Grinding spindle drive Speed 60HZ,3450 R.P.M.;50HZ,2850 R.P.M. Power rating 2.0HP Standard grinding wheel Diameter 203MM(8") Width 12.7mm(1/2"),MAX. 19mm(3/4") Bore 31.75mm(1 1/4") Hydraulic motor Power rating 1HPx6P Crossfeed motor Power rating 40Wx6P elevating motor Power rating 40Wx6P Floor space Total space required 1810x1285x1680mm(71"x50 1/2"x66") Weights Net weight, Approx. 1205KGS(2651LBS) Gross weight, Approx. 1375KGS(3025LBS) Rated power, Approx   3.0HP Packing dimensions L x W x H 1890x1630x1930mm(75"x64"x76")



	ESG-1020ASD   Table Size 254x508mm(10x20") Longitudinal Movement of Table ( Max. travel, infinitely variable) 60HZ,5-25m/min, 50HZ,5-20m/min

CONTROL PANEL GRINDING PROCEDURES   Plunge & surface modes as standard Vertical feed driven by stepping motor & AC motor Vertical jog feed: 0.001mm(0.00005") Auto-downfeed increment: 0.001-0.04mm(0.00005"-0.002") Max. Auto-downfeed amount: 9mm(0.45") Pre-set spark-out: 1-9 times The wheelhead is raised and the table parks upon completion of the spark-out passes   SPECIFICATIONS MODEL ESG-1020ASD Table Size   254x508mm(10x20") Max.grinding length Longitudinal 520mm(20 1/2") Max.grinding width Crosswise 280mm(11") Max. distance from table surface to spindle centerline Standard column:500mm(19 5/8"); Optional high column:600mm(23 5/8") Standard magnetic chuck size 250x500mm(10x20") Longitudinal movement of table Max. travel, hydraulic 580mm(22 3/4") Max. travel, manual 620mm(24 3/8") Max. travel, infinitely variable 60HZ,5-25m/min,50HZ,5-20m/min Cross transverse travel Auto transverse increment 1-13mm(0.04"-0.5") Max. auto transverse travel 270mm(10 5/8") Max. manual transverse travel 300mm(11 3/4") Handwheel per revolution 5mm(0.2") Handwheel per graduation 0.02mm(0.001") Wheelhead vertical infeed Automatic in feed 0.001-0.04mm(0.00005-0.002") Step feed (Jog) 0.001mm(0.00005") Rapid travel, Approx 150mm/min Slow travel, Approx 6mm/min Handwheel revolution 1mm(0.05") Handwheel graduation 0.005mm(0.0005") Grinding spindle drive Speed 60HZ,3450 R.P.M.;50HZ,2850 R.P.M. Power rating 3.0HP Standard grinding wheel Diameter 203MM(8") Width 19mm(3/4"),MAX.25mm(1") Bore 31.75mm(1 1/4") Hydraulic motor Power rating 2.0HPx6P Crossfeed motor Power rating 80Wx6P elevating motor Power rating 80Wx6P Floor space Total space required 240x1450x1750mm(94 1/2"x57"x68 1/2") Weights Net weight, Approx. 1810KGS(3982LBS) Gross weight, Approx. 2160KGS(4752LBS) Rated power, Approx   5 1/5HP Packing dimensions L x W x H 2480x2060x2100mm(98"x81"x83")



	ESG-1224ASD   Table Size 300x600mm(11 13/16x23 5/8") Longitudinal Movement of Table ( Max. travel, infinitely variable) 60HZ,5-25m/min, 50HZ,5-20m/min

CONTROL PANEL GRINDING PROCEDURES   Plunge & surface modes as standard Vertical feed driven by stepping motor & AC motor PRE-SET Spark out: 1-9 times Vertical jog feed: 0.001mm(0.00005") P Auto-downfeed increment: 0.001-0.04mm(0.00005"-0.002") Max. Auto-downfeed amount: 9mm(0.45") . Pre-set spark-out: 1-9 times The wheelhead is raised and the table parks upon completion of the spark-out passes SPECIFICATIONS MODEL ESG-1224ASD Table Size   300x600mm(11 13/16x23 5/8") Max.grinding length Longitudinal 600mm(23 5/8") Max.grinding width Crosswise 300mm(11 13/16") Max. distance from table surface to spindle centerline 585mm(23") Standard magnetic chuck size 300x600m(11 13/16x23 5/8") Longitudinal movement of table Max. travel, hydraulic 650mm(25 9/16") Max. travel, manual 730mm(28 3/4") Max. travel, infinitely variable 60HZ,5-25m/min,50HZ,5-20m/min Cross transverse travel Auto transverse increment 1-19mm(0.04"-0.75") Max. auto transverse travel 310mm(12 3/16") Max. manual transverse travel 340mm(13 3/8") Handwheel per revolution 5mm(0.2") Handwheel per graduation 0.02mm(0.001") Wheelhead vertical infeed Automatic in feed 0.001-0.04mm(0.00005-0.002") Step feed (Jog) 0.001mm(0.00005") Rapid travel, Approx 150mm/min Slow travel, Approx 6mm/min Handwheel revolution 1mm(0.05") Handwheel graduation 0.005mm(0.0005") Grinding spindle drive Speed 60HZ,1750R.P.M.;50HZ,1450R.P.M. Power rating 5HP Standard grinding wheel Diameter 304MM(12") Width 31.75m(1 1/4") Bore 76.2mm(3") Hydraulic motor Power rating 2.0HPx6P Crossfeed motor Power rating 80Wx6P elevating motor Power rating 80Wx6P Floor space Total space required 2700x1600x1850mm(106 1/2x63x73") Weights Net weight, Approx. 1990KGS(4378LBS) Gross weight, Approx. 2290KGS(5038LBS) Rated power, Approx   8 1/4HP Packing dimensions L x W x H 2480x2140x2100mm(98x84x83")



	ESG-1228ASD   Table Size 305x712mm(12x28") Longitudinal Movement of Table 60HZ,5-25m/min,50HZ,5-20m/min

CONTROL PANEL GRINDING PROCEDURES   Maximum cycle downfeed: 9mm(0.45"), can extend to whole vertical(optional accessory-Digital readout set with feedback function) to meet special requirements. 2-step grinding procedure control: Rough grinding 0.001-0.04mm(0.00005"-0.002"); finish grinding 0.001-0.009mm(0.00005"-0.00045") PRE-SET Spark out: 1-9 times Automatically table movement stops and wheel head rises up from surface of workpiece, after cycle grinding completed. Provide plunge & surface grinding modes. Vertical feed powered by double motors; Stepping motor for Auto-downfeed (Min. increment: 0.001mm, 0.00005"); AC motor for rapid & slow up/down.     SPECIFICATIONS MODEL ESG-1228ASD Table Size   305x712mm(12x28") Max.grinding length Longitudinal 712mm(28") Max.grinding width Crosswise 330mm(13") Max. distance from table surface to spindle centerline Standard column:630mm(24 3/4"); Optional high column:720mm(28 5/16") Standard magnetic chuck size 300x700mm(11 3/4x27 1/2") Longitudinal movement of table Max. travel, hydraulic 760mm(30") Max. travel, manual 830mm(32 9/16") Max. travel, infinitely variable 60HZ,5-25m/min,50HZ,5-20m/min Cross transverse travel Auto transverse increment 1~25mm(0.04"-1") Max. auto transverse travel 350mm(13 3/4") Max. manual transverse travel 380mm(15") Handwheel per revolution 5mm(0.2") Handwheel per graduation 0.02mm(0.001") Wheelhead vertical infeed Automatic in feed 0.001-0.04mm(0.00005-0.002") Step feed (Jog) 0.001mm(0.00005") Rapid travel, Approx 150mm/min Slow travel, Approx 6mm/min Handwheel revolution 1mm(0.05") Handwheel graduation 0.005mm(0.0005") Grinding spindle drive Speed 60HZ,1750R.P.M.;50HZ,1450R.P.M. Power rating Standard:5HP; Optional:7 1/2HP,10HP Standard grinding wheel Diameter 355mm(14") Width 50mm(2") Bore 127mm(5") Hydraulic motor Power rating 3.0HPx6P Crossfeed motor Power rating 80Wx6P elevating motor Power rating 1/4HPx6P Floor space Total space required 2950x1970x2050mm(116x78x81") Weights Net weight, Approx. 3020KGS(6644LBS) Gross weight, Approx. 3520KGS(7744LBS) Packing dimensions L x W x H 8 1/2HP(Spindle motor:5HP),11HP(Spindle motor:7.5HP),13 1/2HP(Spindle motor:10HP)



	ESG-1232ASD   Table Size 305x813mm(12x32") Longitudinal Movement of Table 60HZ,5-25m/min,50HZ,5-20m/min

CONTROL PANEL GRINDING PROCEDURES   Maximum cycle downfeed: 9mm(0.45"), can extend to whole vertical(optional accessory-Digital readout set with feedback function) to meet special requirements. 2-step grinding procedure control: Rough grinding 0.001-0.04mm(0.00005"-0.002"); finish grinding 0.001-0.009mm(0.00005"-0.00045") PRE-SET Spark out: 1-9 times Automatically table movement stops and wheel head rises up from surface of workpiece, after cycle grinding completed. Provide plunge & surface grinding modes. Vertical feed powered by double motors; Stepping motor for Auto-downfeed (Min. increment: 0.001mm, 0.00005"); AC motor for rapid & slow up/down.     SPECIFICATIONS MODEL ESG-1232ASD Table Size   305x813mm(12x32") Max.grinding length Longitudinal 813mm(32") Max.grinding width Crosswise 330mm(13") Max. distance from table surface to spindle centerline Standard column:630mm(24 3/4"); Optional high column:720mm(28 5/16") Standard magnetic chuck size 300x800mm(11 3/4x31 1/2") Longitudinal movement of table Max. travel, hydraulic 890mm(35") Max. travel, manual 930mm(36 1/2") Max. travel, infinitely variable 60HZ,5-25m/min,50HZ,5-20m/min Cross transverse travel Auto transverse increment 1~25mm(0.04"-1") Max. auto transverse travel 350mm(13 3/4") Max. manual transverse travel 380mm(15") Handwheel per revolution 5mm(0.2") Handwheel per graduation 0.02mm(0.001") Wheelhead vertical infeed Automatic in feed 0.001-0.04mm(0.00005-0.002") Step feed (Jog) 0.001mm(0.00005") Rapid travel, Approx 150mm/min Slow travel, Approx 6mm/min Handwheel revolution 1mm(0.05") Handwheel graduation 0.005mm(0.0005") Grinding spindle drive Speed 60HZ,1750R.P.M.;50HZ,1450R.P.M. Power rating Standard:5HP; Optional:7 1/2HP,10HP Standard grinding wheel Diameter 355mm(14") Width 50mm(2") Bore 127mm(5") Hydraulic motor Power rating 3.0HPx6P Crossfeed motor Power rating 80Wx6P elevating motor Power rating 1/4HPx6P Floor space Total space required 3290x1970x2050mm(130x78x81") Weights Net weight, Approx. 3170KGS(6974LBS) Gross weight, Approx. 3600KGS(7920LBS) Rated power, Approx   8 1/2HP(Spindle motor:5HP),11HP(Spindle motor:7.5HP),13 1/2HP(Spindle motor:10HP) Packing dimensions L x W x H 2700x2290x2200mm(106x90x88")



	ESG-1236ASD   Table Size 305x915mm(12x36") Longitudinal Movement of Table 60HZ,5-25m/min,50HZ,5-20m/min

CONTROL PANEL GRINDING PROCEDURES   Maximum cycle downfeed: 9mm(0.45"), can extend, to whole vertical(optional accessory-Digital readout set with feedback function) to meet special requirements. 2-step grinding procedure control: Rough grinding 0.001-0.04mm(0.00005"-0.002"); finish grinding 0.001-0.009mm(0.00005"-0.00045") PRE-SET Spark out: 1-9 times Automatically table movement stops and wheel head rises up from surface of workpiece, after cycle grinding completed. ,,Provide plunge & surface grinding modes. Vertical feed powered by double motors; Stepping motor for Auto-downfeed (Min. increment: 0.001mm, 0.00005"); AC motor for rapid & slow up/down.     SPECIFICATIONS MODEL ESG-1236ASD Table Size   305x915mm(12x36") Max.grinding length Longitudinal 915mm(36") Max.grinding width Crosswise 330mm(13") Max. distance from table surface to spindle centerline Standard column:630mm(24 3/4"); Optional high column:720mm(28 5/16") Standard magnetic chuck size 300x900mm(11 3/4x35 3/8") Longitudinal movement of table Max. travel, hydraulic 960mm(37 3/4") Max. travel, manual 1000mm(39 3/8") Max. travel, infinitely variable 60HZ,5-25m/min,50HZ,5-20m/min Cross transverse travel Auto transverse increment 1~25mm(0.04"-1") Max. auto transverse travel 350mm(13 3/4") Max. manual transverse travel 380mm(15") Handwheel per revolution 5mm(0.2") Handwheel per graduation 0.02mm(0.001") Wheelhead vertical infeed Automatic in feed 0.001-0.04mm(0.00005-0.002") Step feed (Jog) 0.001mm(0.00005") Rapid travel, Approx 250mm/min Slow travel, Approx 6mm/min Handwheel revolution 1mm(0.05") Handwheel graduation 0.005mm(0.0005") Grinding spindle drive Speed 60HZ,1750R.P.M.;50HZ,1450R.P.M. Power rating Standard:5HP; Optional:7 1/2HP,10HP Standard grinding wheel Diameter 355mm(14") Width 50mm(2") Bore 127mm(5") Hydraulic motor Power rating 3.0HPx6P Crossfeed motor Power rating 80Wx6P elevating motor Power rating 1/4HPx6P Floor space Total space required 3550x1970x2050mm(140x78x81") Weights Net weight, Approx. 3330KGS(7326LBS) Gross weight, Approx. 3700KGS(8140LBS) Rated power, Approx   8 1/2HP(Spindle motor:5HP),11HP(Spindle motor:7.5HP),13 1/2HP(Spindle motor:10HP) Packing dimensions L x W x H 3000x2290x2200mm(118x90x88")



	ESG-1632ASD   Table Size 406x813mm(16x32") Longitudinal Movement of Table 60HZ,5-25m/min,50HZ,5-20m/min

CONTROL PANEL GRINDING PROCEDURES   Maximum cycle downfeed: 9mm(0.45"), can extend to whole vertical(optional accessory-Digital readout set with feedback function) to meet special requirements. 2-step grinding procedure control: Rough grinding 0.001-0.04mm(0.00005"-0.002"); finish grinding 0.001-0.009mm(0.00005"-0.00045") PRE-SET Spark out: 1-9 times Automatically table movement stops and wheel head rises up from surface of workpiece, after cycle grinding completed. Provide plunge & surface grinding modes. Vertical feed powered by double motors; Stepping motor for Auto-downfeed (Min. increment: 0.001mm, 0.00005"); AC motor for rapid & slow up/down.     SPECIFICATIONS MODEL ESG-1632ASD Table Size   406x813mm(16x32") Max.grinding length Longitudinal 813mm(32") Max.grinding width Crosswise 410mm(16") Max. distance from table surface to spindle centerline Standard column:630mm(24 3/4"); Optional high column:720mm(28 5/16") Standard magnetic chuck size 400x800mm(15 11/16x31 1/2") Longitudinal movement of table Max. travel, hydraulic 890mm(35") Max. travel, manual 930mm(36 1/2") Max. travel, infinitely variable 60HZ,5-25m/min,50HZ,5-20m/min Cross transverse travel Auto transverse increment 1~25mm(0.04"-1") Max. auto transverse travel 430mm(17") Max. manual transverse travel 460mm(18") Handwheel per revolution 5mm(0.2") Handwheel per graduation 0.02mm(0.001") Wheelhead vertical infeed Automatic in feed 0.001-0.04mm(0.00005-0.002") Step feed (Jog) 0.001mm(0.00005") Rapid travel, Approx 150mm/min Slow travel, Approx 6mm/min Handwheel revolution 1mm(0.05") Handwheel graduation 0.005mm(0.0005") Grinding spindle drive Speed 60HZ,1750R.P.M.;50HZ,1450R.P.M. Power rating Standard:5HP; Optional:7 1/2HP,10HP Standard grinding wheel Diameter 355mm(14") Width 50mm(2") Bore 127mm(5") Hydraulic motor Power rating 3.0HPx6P Crossfeed motor Power rating 80Wx6P elevating motor Power rating 1/4HPx6P Floor space Total space required 3290x2200x2050mm(130x87x81") Weights Net weight, Approx. 3400KGS(7480LBS) Gross weight, Approx. 4000KGS(8800LBS) Rated power, Approx   8 1/2HP(Spindle motor:5HP),11HP(Spindle motor:7.5HP),13 1/2HP(Spindle motor:10HP) Packing dimensions L x W x H 2800x2290x2200mm(110x90x88")



	ESG-1640ASD   Table Size 406x1020mm(16x40") Longitudinal Movement of Table 60HZ,5-25m/min,50HZ,5-20m/min

CONTROL PANEL GRINDING PROCEDURES   Maximum cycle downfeed: 9mm(0.45"), can extend to whole vertical(optional accessory-Digital readout set with feedback function) to meet special requirements. 2-step grinding procedure control: Rough grinding 0.001-0.04mm(0.00005"-0.002"); finish grinding 0.001-0.009mm(0.00005"-0.00045") PRE-SET Spark out: 1-9 times Automatically table movement stops and wheel head rises up from surface of workpiece, after cycle grinding completed. Provide plunge & surface grinding modes. Vertical feed powered by double motors; Stepping motor for Auto-downfeed (Min. increment: 0.001mm, 0.00005"); AC motor for rapid & slow up/down.     SPECIFICATIONS MODEL ESG-1640ASD Table Size   406x813mm(16x32") Max.grinding length Longitudinal 1020mm(40") Max.grinding width Crosswise 410mm(16") Max. distance from table surface to spindle centerline Standard column:630mm(24 3/4"); Optional high column:720mm(28 5/16") Standard magnetic chuck size 400x1000mm(15 11/16x39 1/4") Longitudinal movement of table Max. travel, hydraulic 1060mm(41 11/16") Max. travel, manual 1100mm(43 1/4") Max. travel, infinitely variable 60HZ,5-25m/min,50HZ,5-20m/min Cross transverse travel Auto transverse increment 1~25mm(0.04"-1") Max. auto transverse travel 430mm(17") Max. manual transverse travel 460mm(18") Handwheel per revolution 5mm(0.2") Handwheel per graduation 0.02mm(0.001") Wheelhead vertical infeed Automatic in feed 0.001-0.04mm(0.00005-0.002") Step feed (Jog) 0.001mm(0.00005") Rapid travel, Approx 150mm/min Slow travel, Approx 6mm/min Handwheel revolution 1mm(0.05") Handwheel graduation 0.005mm(0.0005") Grinding spindle drive Speed 60HZ,1750R.P.M.;50HZ,1450R.P.M. Power rating Standard:5HP; Optional:7 1/2HP,10HP Standard grinding wheel Diameter 355mm(14") Width 50mm(2") Bore 127mm(5") Hydraulic motor Power rating 3.0HPx6P Crossfeed motor Power rating 80Wx6P elevating motor Power rating 1/4HPx6P Floor space Total space required 4020x2200x2050xmm(158x87x81") Weights Net weight, Approx. 4000KGS(8800LBS) Gross weight, Approx. 4500KGS(9900LBS) Rated power, Approx   8 1/2HP(Spindle motor:5HP),11HP(Spindle motor:7.5HP),13 1/2HP(Spindle motor:10HP) Packing dimensions L x W x H 3250x2290x2200mm(128x90x88")



ESG-6120ASD
Table Size 610X1220mm(24"x48") Longitudinal Movement of Table 1260mm(49.6")
Specifications:
MODEL ESG-6120ASD Table Size   610x2060mm(24"x80") Max.grinding length Longitudinal 2060mm(24") Max.grinding width Crosswise 610mm(24") Max. distance from table surface to spindle centerline 720mm;850mm(optional) Standard magnetic chuck size 600x1000x2pieces (23.6"x29.5") Longitudinal movement of table Max.Travel hydraulic 2100mm(82.7") Max.Travel Manual 2150mm(84.6") Max. Travel, Infinitely Variable 5~30m/min Wheelhead Crossfeed Transverse Travel Auto. Transverse Increment (Jog) 1~25mm(0.04"~1") Auto. Constant Feeding Speed 25~280mm/min(1"~11"/min) Max. Auto. Transverse Travel 660mm(25.98) Max. Manual Transverse Tranel 685mm(26.96) MPG per Revolution 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation 0.001mm x1; 0.001mm x2; 0.001mm x4 (optional) Wheelhead vertical infeed (Controlled by Servomotor) Automactic Infeed Rough grinding ASD:0.001~0.04mm/ASD II: 0.001~0.05mm; Finish grinding ASD /ASD II: 0.001~0.009mm Step Feed(Jog) Jogging downfeed:0.001mm(0.25/10000") ASD:0.001~0.04 Jogging step increment :0.001~0.05mm(1~25/10000") ASD II:0.001~0.05 Rapid Travel, Approx 460mm(18")/min Slow Travel Approx 6mm(0.25")/min MPG per Revolution (optional) 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation (optional) 0.001mm x1/ 0.001mm x2 /0.001mm x4 (optional) Grinding spindle drive Speed 60HZ,1750 R.P.M. 50HZ,1450 R.P.M. Power rating Standard:10HP/4P(7.5KW) ; optional:15HP/4P(11.25KW);20HP/4P(15KW); 25HP/4P(18.75KW) Standard grinding wheel Diameter 400mm(16") Width 50mm(2");65mm(2 1/2")(optional) Bore 127mm(5") Hydraulic Motor Power Rating 5HP/6P(5.625KW) Crossfeed Motor Power Rating DC 400W/Servo Elevating Motor Power Rating 700W/Servo Total space require (L x W x H) 5660x3500x2350mm(223"x138"x93") Weights Net weight 13500KGS (29700LBS) Gross weight 15000KGS (33000LBS) Total power, Approx (Standard power Rating) 18HP(13.5KW) Packing Dimensions L x W x H 5800x2290x2450mm(229"x91"x99")

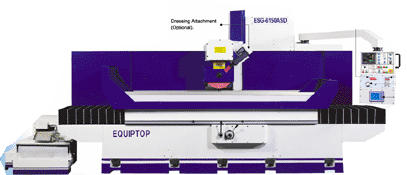

ESG-6150ASD

Table Size 610x1524mm(24"x60") Longitudinal Movement of Table 1560mm(61.5")

Specifications:

MODEL ESG-6150ASD Table Size   610x1524mm(24"x60") Max.grinding length Longitudinal 1560mm(61.5") Max.grinding width Crosswise 610mm(24") Max. distance from table surface to spindle centerline 720mm;850mm(optional) Standard magnetic chuck size 600x750x2pieces (23.6"x29.5") Longitudinal movement of table Max.Travel hydraulic 1600mm(63") Max.Travel Manual 1650mm(64.9") Max. Travel, Infinitely Variable 5~30m/min Wheelhead Crossfeed Transverse Travel Auto. Transverse Increment (Jog) 1~25mm(0.04"~1") Auto. Constant Feeding Speed 25~280mm/min(1"~11"/min) Max. Auto. Transverse Travel 660mm(25.98) Max. Manual Transverse Tranel 685mm(26.96) MPG per Revolution 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation 0.001mm x1; 0.001mm x2; 0.001mm x4 (optional) Wheelhead vertical infeed (Controlled by Servomotor) Automactic Infeed 1mm(0.05") Step Feed(Jog) Jogging downfeed:0.001mm(0.25/10000") ASD:0.001~0.04 Jogging step increment :0.001~0.05mm(1~25/10000") ASD II:0.001~0.05 Rapid Travel, Approx 460mm(18")/min Slow Travel Approx 6mm(0.25")/min MPG per Revolution (optional) 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation (optional) 0.001mm x1/ 0.001mm x2 /0.001mm x4 (optional) Grinding spindle drive Speed 60HZ,1750 R.P.M. 50HZ,1450 R.P.M. Power rating Standard:10HP/4P(7.5KW) ; optional:15HP/4P(11.25KW);20HP/4P(15KW); 25HP/4P(18.75KW) Standard grinding wheel Diameter 400mm(16") Width 50mm(2");65mm(2 1/2")(optional) Bore 127mm(5") Hydraulic Motor Power Rating 5HP/6P(5.625KW) Crossfeed Motor Power Rating DC 400W/Servo Elevating Motor Power Rating 700W/Servo Total space require (L x W x H) 4500x3500x2350mm(177"x138"x93") Weights Net weight 12600KGS (27720LBS) Gross weight 14500KGS (31900LBS) Total power, Approx (Standard power Rating) 18HP(13.5KW) Packing Dimensions L x W x H 4600x2290x2450mm(181"x91"x99")



ESG-6200ASD

Table Size 610x2060mm(24"x80") Longitudinal Movement of Table 2060mm(24")

Specifications:

MODEL ESG-6200ASD Table Size   610x2060mm(24"x80") Max.grinding length Longitudinal 2060mm(24") Max.grinding width Crosswise 610mm(24") Max. distance from table surface to spindle centerline 720mm;850mm(optional) Standard magnetic chuck size 600x1000x2pieces (23.6"x29.5") Longitudinal movement of table Max.Travel hydraulic 2100mm(82.7") Max.Travel Manual 2150mm(84.6") Max. Travel, Infinitely Variable 5~30m/min Wheelhead Crossfeed Transverse Travel Auto. Transverse Increment (Jog) 1~25mm(0.04"~1") Auto. Constant Feeding Speed 25~280mm/min(1"~11"/min) Max. Auto. Transverse Travel 660mm(25.98) Max. Manual Transverse Tranel 685mm(26.96) MPG per Revolution 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation 0.001mm x1; 0.001mm x2; 0.001mm x4 (optional) Wheelhead vertical infeed (Controlled by Servomotor) Automactic Infeed Rough grinding ASD:0.001~0.04mm/ASD II: 0.001~0.05mm; Finish grinding ASD /ASD II: 0.001~0.009mm Step Feed(Jog) Jogging downfeed:0.001mm(0.25/10000") ASD:0.001~0.04 Jogging step increment :0.001~0.05mm(1~25/10000") ASD II:0.001~0.05 Rapid Travel, Approx 460mm(18")/min Slow Travel Approx 6mm(0.25")/min MPG per Revolution (optional) 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation (optional) 0.001mm x1/ 0.001mm x2 /0.001mm x4 (optional) Grinding spindle drive Speed 60HZ,1750 R.P.M. 50HZ,1450 R.P.M. Power rating Standard:10HP/4P(7.5KW) ; optional:15HP/4P(11.25KW);20HP/4P(15KW); 25HP/4P(18.75KW) Standard grinding wheel Diameter 400mm(16") Width 50mm(2");65mm(2 1/2")(optional) Bore 127mm(5") Hydraulic Motor Power Rating 5HP/6P(5.625KW) Crossfeed Motor Power Rating DC 400W/Servo Elevating Motor Power Rating 700W/Servo Total space require (L x W x H) 5660x3500x2350mm(223"x138"x93") Weights Net weight 13500KGS (29700LBS) Gross weight 15000KGS (33000LBS) Total power, Approx (Standard power Rating) 18HP(13.5KW) Packing Dimensions L x W x H 5800x2290x2450mm(229"x91"x99")



ESG-3A 8150ASD

Table Size 810x1550mm(32"x60") Longitudinal Movement of Table 1550mm(61")

Specifications:

MODEL ESG-8150ASD Table Size   810x1550mm(32"x60") Max.grinding length Longitudinal 1550mm(61") Max.grinding width Crosswise 810mm(32") Max. distance from table surface to spindle centerline 720mm;850mm(optional) Standard magnetic chuck size 800x750x2pieces (23.6"x29.5") Longitudinal movement of table Max.Travel hydraulic 1600mm(63") Max.Travel Manual 1650mm(64.9") Max. Travel, Infinitely Variable 5~30m/min Wheelhead Crossfeed Transverse Travel Auto. Transverse Increment (Jog) 1~25mm(0.04"~1") Auto. Constant Feeding Speed 25~280mm/min(1"~11"/min) Max. Auto. Transverse Travel 860mm(33.85") Max. Manual Transverse Tranel 885mm(34.85") MPG per Revolution 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation 0.001mm x1; 0.001mm x2; 0.001mm x4 (optional) Wheelhead vertical infeed (Controlled by Servomotor) Automactic Infeed Rough grinding ASD:0.001~0.04mm/ASD II: 0.001~0.05mm; Finish grinding ASD /ASD II: 0.001~0.009mm Step Feed(Jog) Jogging downfeed:0.001mm(0.25/10000") ASD:0.001~0.04 Jogging step increment :0.001~0.05mm(1~25/10000") ASD II:0.001~0.05 Rapid Travel, Approx 460mm(18")/min Slow Travel Approx 6mm(0.25")/min MPG per Revolution (optional) 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation (optional) 0.001mm x1/ 0.001mm x2 /0.001mm x4 (optional) Grinding spindle drive Speed 60HZ,1750 R.P.M. 50HZ,1450 R.P.M. Power rating Standard:10HP/4P(7.5KW) ; optional:15HP/4P(11.25KW);20HP/4P(15KW); 25HP/4P(18.75KW) Standard grinding wheel Diameter 400mm(16") Width 50mm(2");65mm(2 1/2")(optional) Bore 127mm(5") Hydraulic Motor Power Rating 5HP/6P(5.625KW) Crossfeed Motor Power Rating DC 400W/Servo Elevating Motor Power Rating 700W/Servo Total space require (L x W x H) 4900x3700x2350mm(193"x146"x93") Weights Net weight 13500KGS (29700LBS) Gross weight 15000KGS (33000LBS) Total power, Approx (Standard power Rating) 22HP(13.5KW) Packing Dimensions L x W x H 4600x2290x2450mm(181"x91"x99")



ESG-8200ASD
Table Size 810x2050mm(32"x80") Longitudinal Movement of Table 2050mm(81")
Specifications

MODEL ESG-8200ASD Table Size   810x2050mm(32"x60") Max.grinding length Longitudinal 2050mm(81") Max.grinding width Crosswise 810mm(32") Max. distance from table surface to spindle centerline 720mm;850mm(optional) Standard magnetic chuck size 800x1000x2pieces Longitudinal movement of table Max.Travel hydraulic 2100mm(82.5") Max.Travel Manual 2150mm(84") Max. Travel, Infinitely Variable 5~30m/min Wheelhead Crossfeed Transverse Travel Auto. Transverse Increment (Jog) 1~25mm(0.04"~1") Auto. Constant Feeding Speed 25~280mm/min(1"~11"/min) Max. Auto. Transverse Travel 860mm(33.85") Max. Manual Transverse Tranel 885mm(34.85") MPG per Revolution 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation 0.001mm x1; 0.001mm x2; 0.001mm x4 (optional) Wheelhead vertical infeed (Controlled by Servomotor) Automactic Infeed Rough grinding ASD:0.001~0.04mm/ASD II: 0.001~0.05mm; Finish grinding ASD /ASD II: 0.001~0.009mm Step Feed(Jog) Jogging downfeed:0.001mm(0.25/10000") ASD:0.001~0.04 Jogging step increment :0.001~0.05mm(1~25/10000") ASD II:0.001~0.05 Rapid Travel, Approx 460mm(18")/min Slow Travel Approx 6mm(0.25")/min MPG per Revolution (optional) 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation (optional) 0.001mm x1/ 0.001mm x2 /0.001mm x4 (optional) Grinding spindle drive Speed 60HZ,1750 R.P.M. 50HZ,1450 R.P.M. Power rating Standard:15HP/4P(7.5KW) ; optional:20HP/4P(15KW);20HP/4P(15KW); 25HP/4P(18.75KW) Standard grinding wheel Diameter 400mm(16") Width 50mm(2");65mm(2 1/2")(optional) Bore 127mm(5") Hydraulic Motor Power Rating 5HP/6P(5.625KW) Crossfeed Motor Power Rating DC 400W/Servo Elevating Motor Power Rating 700W/Servo Total space require (L x W x H) 5660x3700x2350mm(223"x146"x93") Weights Net weight 15000KGS (33000LBS) Gross weight 16500KGS (36300LBS) Total power, Approx (Standard power Rating) 22HP(13.5KW) Packing Dimensions L x W x H 5800x2290x2450mm(229"x91"x99")



ESG-8300ASD

Table Size 810x3050mm(32"x120") Longitudinal Movement of Table 3050mm(120")

Specifications:

Table Size   810x3050mm(32"x120") Max.grinding length Longitudinal 3050mm(120") Max.grinding width Crosswise 810mm(32") Max. distance from table surface to spindle centerline 720mm;850mm(optional) Standard magnetic chuck size 800x1000x3pieces Longitudinal movement of table <,/,TD> Max.Travel hydraulic 3100mm(122") Max.Travel Manual 3150mm(124") Max. Travel, Infinitely Variable 5~30m/min Wheelhead Crossfeed Transverse Travel Auto. Transverse Increment (Jog) 1~25mm(0.04"~1") Auto. Constant Feeding Speed 25~280mm/min(1"~11"/min) Max. Auto. Transverse Travel 860mm(33.85") Max. Manual Transverse Tranel 885mm(34.85") MPG per Revolution 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation 0.001mm x1; 0.001mm x2; 0.001mm x4 (optional) Wheelhead vertical infeed (Controlled by Servomotor) Automactic Infeed Rough grinding ASD:0.001~0.04mm/ASD II: 0.001~0.05mm; Finish grinding ASD /ASD II: 0.001~0.009mm Step Feed(Jog) Jogging downfeed:0.001mm(0.25/10000") ASD:0.001~0.04 Jogging step increment :0.001~0.05mm(1~25/10000") ASD II:0.001~0.05 Rapid Travel, Approx 460mm(18")/min Slow Travel Approx 6mm(0.25")/min MPG per Revolution (optional) 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation (optional) 0.001mm x1/ 0.001mm x2 /0.001mm x4 (optional) Grinding spindle drive Speed 60HZ,1750 R.P.M. 50HZ,1450 R.P.M. Power rating Standard:15HP/4P(7.5KW) ; optional:20HP/4P(15KW);20HP/4P(15KW); 25HP/4P(18.75KW) Standard grinding wheel Diameter 400mm(16") Width 50mm(2");65mm(2 1/2")(optional) Bore 127mm(5") Hydraulic Motor Power Rating 5HP/6P(5.625KW) Crossfeed Motor Power Rating DC 400W/Servo Elevating Motor Power Rating 700W/Servo Total space require (L x W x H) 7560x3700x2350mm(298"x146"x93") Weights Net weight 17000KGS (33000LBS) Gross weight 19000KGS (36300LBS) Total power, Approx (Standard power Rating) 22HP(13.5KW) Packing Dimensions L x W x H 7600x2290x2450mm(300"x91"x99") NOTE: The manufacturer reserves the right to modify the design, specifications, mechanisms, etc., to improve the performances of the machine without notice. All the specifications shown above are just for reference.





General Features:

1.HIGH PRECISION CARTRIDGE WHEEL SPINDLE:

High precision cartridge type spindle is supported by two preloaded precision angular contact ball bearings & one NN type Roller bearing and driven by V3 class motor that allow high accurate grinding performance. (618/818 series are driven by 2.0HP motor.)

2.HIGH ANTI-WEAR GUIDE WAYS:

The saddle rests on precision hand-scraped double V ways, and the table rests on precision hand-scraped V and flat ways which coated with "TURCITE-B". These guide ways are equipped with auto lubrication to resist wear of guide ways, plus lasting accuracy and damping.

3.HIGH RIGID CASTING CONSTRUCTION:

Machines are casted with high grade casting iron with heavy walls and reinforced ribs to provide excellent rigidity and damping.

4.ENLARGED COLUMN AND BASE:

Enlarged column and base create high stability and rigidity. The height of column is increased up to 18" (460mm) from table surface to the center line of spindle.

5.AUTO LUBE SYSTEM:

Automatic lubrication system is applied as standard to ensure sufficient lubrication at lead-screws and guide-ways for more longevity.

6.LONGITUDINAL & CROSS DRIVE:

For all models, except 618 & 818 handfeed, the longitudinal movement is driven by hydraulic system; for 2A, 3A, ASD series, the cross movement is driven by motor for more accurate increment feeding.

Precision Spindle (for 614~818) Saddle and table     Indexible table handwheel ·Positioning system(for 614)   ·Auto lubrcation system       ·Cross slice way

Optional Accessores:

Electro Magnetic Chuck Inclinable Permanent Magnetic Chuck Coolant System Dust Collector Coolant and Dust Unit Coolant System With Magnetic Separator Work Lamp Splash Guard Wheel Flange Manual Parallel Dresser Chuck Control With Demagnetizer Precision Vice Punch Former Balancing Stand (Double Line) Roller Type Balancing Stand Digital Readout Micro Crossfeed (614~818) Manual Pulse Generator Permanent Magnetic Chuck Manual Pulse Generator

Standare Accessories: 1.Tool box with tools 5.Grinding Wheel 9.Diamond dresser 2.Wheel extract screw & nut 6.Wheel flange 10.Crossfed Ballscrew 3.Balancing arbor 7.Touch-up paint   4.Levelling screw with blocks 8.Auto lubrication system

, to whole vertical(optional accessory-Digital readout set with feedback function) to meet special requirements. 2-step grinding procedure control: Rough grinding 0.001-0.04mm(0.00005"-0.002"); finish grinding 0.001-0.009mm(0.00005"-0.00045") PRE-SET Spark out: 1-9 times Automatically table movement stops and wheel head rises up from surface of workpiece, after cycle grinding completed. ,,Provide plunge & surface grinding modes.

Vertical feed powered by double motors; Stepping motor for Auto-downfeed (Min. increment: 0.001mm, 0.00005"); AC motor for rapid & slow up/down.





SPECIFICATIONS

Table Size   305x915mm(12x36") Max.grinding length Longitudinal 915mm(36") Max.grinding width Crosswise 330mm(13") Max. distance from table surface to
spindle centerline

Standard column:630mm(24 3/4");

Optional high column:720mm(28 5/16")

Standard magnetic chuck size 300x900mm(11 3/4x35 3/8") Longitudinal movement of table Max. travel, hydraulic 960mm(37 3/4") Max. travel, manual 1000mm(39 3/8") Max. travel, infinitely variable 60HZ,5-25m/min,50HZ,5-20m/min Cross transverse travel Auto transverse increment 1~25mm(0.04"-1") Max. auto transverse travel 350mm(13 3/4") Max. manual transverse travel 380mm(15") Handwheel per revolution 5mm(0.2") Handwheel per graduation 0.02mm(0.001") Wheelhead vertical infeed Automatic in feed 0.001-0.04mm(0.00005-0.002") Step feed (Jog) 0.001mm(0.00005") Rapid travel, Approx 250mm/min Slow travel, Approx 6mm/min Handwheel revolution 1mm(0.05") Handwheel graduation 0.005mm(0.0005") Grinding spindle drive Speed 60HZ,1750R.P.M.;50HZ,1450R.P.M. Power rating Standard:5HP; Optional:7 1/2HP,10HP Standard grinding wheel Diameter 355mm(14") Width 50mm(2") Bore 127mm(5") Hydraulic motor Power rating 3.0HPx6P Crossfeed motor Power rating 80Wx6P elevating motor Power rating 1/4HPx6P Floor space Total space required 3550x1970x2050mm(140x78x81") Weights Net weight, Approx. 3330KGS(7326LBS) Gross weight, Approx. 3700KGS(8140LBS) Rated power, Approx   8 1/2HP(Spindle motor:5HP),11HP(Spindle motor:7.5HP),13 1/2HP(Spindle motor:10HP) Packing dimensions L x W x H 3000x2290x2200mm(118x90x88")



	ESG-1632ASD   Table Size 406x813mm(16x32") Longitudinal Movement of Table 60HZ,5-25m/min,50HZ,5-20m/min

CONTROL PANEL GRINDING PROCEDURES   Maximum cycle downfeed: 9mm(0.45"), can extend to whole vertical(optional accessory-Digital readout set with feedback function) to meet special requirements. 2-step grinding procedure control: Rough grinding 0.001-0.04mm(0.00005"-0.002"); finish grinding 0.001-0.009mm(0.00005"-0.00045") PRE-SET Spark out: 1-9 times Automatically table movement stops and wheel head rises up from surface of workpiece, after cycle grinding completed. Provide plunge & surface grinding modes. Vertical feed powered by double motors; Stepping motor for Auto-downfeed (Min. increment: 0.001mm, 0.00005"); AC motor for rapid & slow up/down.     SPECIFICATIONS MODEL ESG-1632ASD Table Size   406x813mm(16x32") Max.grinding length Longitudinal 813mm(32") Max.grinding width Crosswise 410mm(16") Max. distance from table surface to spindle centerline Standard column:630mm(24 3/4"); Optional high column:720mm(28 5/16") Standard magnetic chuck size 400x800mm(15 11/16x31 1/2") Longitudinal movement of table Max. travel, hydraulic 890mm(35") Max. travel, manual 930mm(36 1/2") Max. travel, infinitely variable 60HZ,5-25m/min,50HZ,5-20m/min Cross transverse travel Auto transverse increment 1~25mm(0.04"-1") Max. auto transverse travel 430mm(17") Max. manual transverse travel 460mm(18") Handwheel per revolution 5mm(0.2") Handwheel per graduation 0.02mm(0.001") Wheelhead vertical infeed Automatic in feed 0.001-0.04mm(0.00005-0.002") Step feed (Jog) 0.001mm(0.00005") Rapid travel, Approx 150mm/min Slow travel, Approx 6mm/min Handwheel revolution 1mm(0.05") Handwheel graduation 0.005mm(0.0005") Grinding spindle drive Speed 60HZ,1750R.P.M.;50HZ,1450R.P.M. Power rating Standard:5HP; Optional:7 1/2HP,10HP Standard grinding wheel Diameter 355mm(14") Width 50mm(2") Bore 127mm(5") Hydraulic motor Power rating 3.0HPx6P Crossfeed motor Power rating 80Wx6P elevating motor Power rating 1/4HPx6P Floor space Total space required 3290x2200x2050mm(130x87x81") Weights Net weight, Approx. 3400KGS(7480LBS) Gross weight, Approx. 4000KGS(8800LBS) Rated power, Approx   8 1/2HP(Spindle motor:5HP),11HP(Spindle motor:7.5HP),13 1/2HP(Spindle motor:10HP) Packing dimensions L x W x H 2800x2290x2200mm(110x90x88")



	ESG-1640ASD   Table Size 406x1020mm(16x40") Longitudinal Movement of Table 60HZ,5-25m/min,50HZ,5-20m/min

CONTROL PANEL GRINDING PROCEDURES   Maximum cycle downfeed: 9mm(0.45"), can extend to whole vertical(optional accessory-Digital readout set with feedback function) to meet special requirements. 2-step grinding procedure control: Rough grinding 0.001-0.04mm(0.00005"-0.002"); finish grinding 0.001-0.009mm(0.00005"-0.00045") PRE-SET Spark out: 1-9 times Automatically table movement stops and wheel head rises up from surface of workpiece, after cycle grinding completed. Provide plunge & surface grinding modes. Vertical feed powered by double motors; Stepping motor for Auto-downfeed (Min. increment: 0.001mm, 0.00005"); AC motor for rapid & slow up/down.     SPECIFICATIONS MODEL ESG-1640ASD Table Size   406x813mm(16x32") Max.grinding length Longitudinal 1020mm(40") Max.grinding width Crosswise 410mm(16") Max. distance from table surface to spindle centerline Standard column:630mm(24 3/4"); Optional high column:720mm(28 5/16") Standard magnetic chuck size 400x1000mm(15 11/16x39 1/4") Longitudinal movement of table Max. travel, hydraulic 1060mm(41 11/16") Max. travel, manual 1100mm(43 1/4") Max. travel, infinitely variable 60HZ,5-25m/min,50HZ,5-20m/min Cross transverse travel Auto transverse increment 1~25mm(0.04"-1") Max. auto transverse travel 430mm(17") Max. manual transverse travel 460mm(18") Handwheel per revolution 5mm(0.2") Handwheel per graduation 0.02mm(0.001") Wheelhead vertical infeed Automatic in feed 0.001-0.04mm(0.00005-0.002") Step feed (Jog) 0.001mm(0.00005") Rapid travel, Approx 150mm/min Slow travel, Approx 6mm/min Handwheel revolution 1mm(0.05") Handwheel graduation 0.005mm(0.0005") Grinding spindle drive Speed 60HZ,1750R.P.M.;50HZ,1450R.P.M. Power rating Standard:5HP; Optional:7 1/2HP,10HP Standard grinding wheel Diameter 355mm(14") Width 50mm(2") Bore 127mm(5") Hydraulic motor Power rating 3.0HPx6P Crossfeed motor Power rating 80Wx6P elevating motor Power rating 1/4HPx6P Floor space Total space required 4020x2200x2050xmm(158x87x81") Weights Net weight, Approx. 4000KGS(8800LBS) Gross weight, Approx. 4500KGS(9900LBS) Rated power, Approx   8 1/2HP(Spindle motor:5HP),11HP(Spindle motor:7.5HP),13 1/2HP(Spindle motor:10HP) Packing dimensions L x W x H 3250x2290x2200mm(128x90x88")



ESG-6120ASD
Table Size 610X1220mm(24"x48") Longitudinal Movement of Table 1260mm(49.6")
Specifications:
MODEL ESG-6120ASD Table Size   610x2060mm(24"x80") Max.grinding length Longitudinal 2060mm(24") Max.grinding width Crosswise 610mm(24") Max. distance from table surface to spindle centerline 720mm;850mm(optional) Standard magnetic chuck size 600x1000x2pieces (23.6"x29.5") Longitudinal movement of table Max.Travel hydraulic 2100mm(82.7") Max.Travel Manual 2150mm(84.6") Max. Travel, Infinitely Variable 5~30m/min Wheelhead Crossfeed Transverse Travel Auto. Transverse Increment (Jog) 1~25mm(0.04"~1") Auto. Constant Feeding Speed 25~280mm/min(1"~11"/min) Max. Auto. Transverse Travel 660mm(25.98) Max. Manual Transverse Tranel 685mm(26.96) MPG per Revolution 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation 0.001mm x1; 0.001mm x2; 0.001mm x4 (optional) Wheelhead vertical infeed (Controlled by Servomotor) Automactic Infeed Rough grinding ASD:0.001~0.04mm/ASD II: 0.001~0.05mm; Finish grinding ASD /ASD II: 0.001~0.009mm Step Feed(Jog) Jogging downfeed:0.001mm(0.25/10000") ASD:0.001~0.04 Jogging step increment :0.001~0.05mm(1~25/10000") ASD II:0.001~0.05 Rapid Travel, Approx 460mm(18")/min Slow Travel Approx 6mm(0.25")/min MPG per Revolution (optional) 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation (optional) 0.001mm x1/ 0.001mm x2 /0.001mm x4 (optional) Grinding spindle drive Speed 60HZ,1750 R.P.M. 50HZ,1450 R.P.M. Power rating Standard:10HP/4P(7.5KW) ; optional:15HP/4P(11.25KW);20HP/4P(15KW); 25HP/4P(18.75KW) Standard grinding wheel Diameter 400mm(16") Width 50mm(2");65mm(2 1/2")(optional) Bore 127mm(5") Hydraulic Motor Power Rating 5HP/6P(5.625KW) Crossfeed Motor Power Rating DC 400W/Servo Elevating Motor Power Rating 700W/Servo Total space require (L x W x H) 5660x3500x2350mm(223"x138"x93") Weights Net weight 13500KGS (29700LBS) Gross weight 15000KGS (33000LBS) Total power, Approx (Standard power Rating) 18HP(13.5KW) Packing Dimensions L x W x H 5800x2290x2450mm(229"x91"x99")



ESG-6150ASD

Table Size 610x1524mm(24"x60") Longitudinal Movement of Table 1560mm(61.5")

Specifications:

MODEL ESG-6150ASD Table Size   610x1524mm(24"x60") Max.grinding length Longitudinal 1560mm(61.5") Max.grinding width Crosswise 610mm(24") Max. distance from table surface to spindle centerline 720mm;850mm(optional) Standard magnetic chuck size 600x750x2pieces (23.6"x29.5") Longitudinal movement of table Max.Travel hydraulic 1600mm(63") Max.Travel Manual 1650mm(64.9") Max. Travel, Infinitely Variable 5~30m/min Wheelhead Crossfeed Transverse Travel Auto. Transverse Increment (Jog) 1~25mm(0.04"~1") Auto. Constant Feeding Speed 25~280mm/min(1"~11"/min) Max. Auto. Transverse Travel 660mm(25.98) Max. Manual Transverse Tranel 685mm(26.96) MPG per Revolution 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation 0.001mm x1; 0.001mm x2; 0.001mm x4 (optional) Wheelhead vertical infeed (Controlled by Servomotor) Automactic Infeed 1mm(0.05") Step Feed(Jog) Jogging downfeed:0.001mm(0.25/10000") ASD:0.001~0.04 Jogging step increment :0.001~0.05mm(1~25/10000") ASD II:0.001~0.05 Rapid Travel, Approx 460mm(18")/min Slow Travel Approx 6mm(0.25")/min MPG per Revolution (optional) 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation (optional) 0.001mm x1/ 0.001mm x2 /0.001mm x4 (optional) Grinding spindle drive Speed 60HZ,1750 R.P.M. 50HZ,1450 R.P.M. Power rating Standard:10HP/4P(7.5KW) ; optional:15HP/4P(11.25KW);20HP/4P(15KW); 25HP/4P(18.75KW) Standard grinding wheel Diameter 400mm(16") Width 50mm(2");65mm(2 1/2")(optional) Bore 127mm(5") Hydraulic Motor Power Rating 5HP/6P(5.625KW) Crossfeed Motor Power Rating DC 400W/Servo Elevating Motor Power Rating 700W/Servo Total space require (L x W x H) 4500x3500x2350mm(177"x138"x93") Weights Net weight 12600KGS (27720LBS) Gross weight 14500KGS (31900LBS) Total power, Approx (Standard power Rating) 18HP(13.5KW) Packing Dimensions L x W x H 4600x2290x2450mm(181"x91"x99")



ESG-6200ASD

Table Size 610x2060mm(24"x80") Longitudinal Movement of Table 2060mm(24")

Specifications:

MODEL ESG-6200ASD Table Size   610x2060mm(24"x80") Max.grinding length Longitudinal 2060mm(24") Max.grinding width Crosswise 610mm(24") Max. distance from table surface to spindle centerline 720mm;850mm(optional) Standard magnetic chuck size 600x1000x2pieces (23.6"x29.5") Longitudinal movement of table Max.Travel hydraulic 2100mm(82.7") Max.Travel Manual 2150mm(84.6") Max. Travel, Infinitely Variable 5~30m/min Wheelhead Crossfeed Transverse Travel Auto. Transverse Increment (Jog) 1~25mm(0.04"~1") Auto. Constant Feeding Speed 25~280mm/min(1"~11"/min) Max. Auto. Transverse Travel 660mm(25.98) Max. Manual Transverse Tranel 685mm(26.96) MPG per Revolution 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation 0.001mm x1; 0.001mm x2; 0.001mm x4 (optional) Wheelhead vertical infeed (Controlled by Servomotor) Automactic Infeed Rough grinding ASD:0.001~0.04mm/ASD II: 0.001~0.05mm; Finish grinding ASD /ASD II: 0.001~0.009mm Step Feed(Jog) Jogging downfeed:0.001mm(0.25/10000") ASD:0.001~0.04 Jogging step increment :0.001~0.05mm(1~25/10000") ASD II:0.001~0.05 Rapid Travel, Approx 460mm(18")/min Slow Travel Approx 6mm(0.25")/min MPG per Revolution (optional) 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation (optional) 0.001mm x1/ 0.001mm x2 /0.001mm x4 (optional) Grinding spindle drive Speed 60HZ,1750 R.P.M. 50HZ,1450 R.P.M. Power rating Standard:10HP/4P(7.5KW) ; optional:15HP/4P(11.25KW);20HP/4P(15KW); 25HP/4P(18.75KW) Standard grinding wheel Diameter 400mm(16") Width 50mm(2");65mm(2 1/2")(optional) Bore 127mm(5") Hydraulic Motor Power Rating 5HP/6P(5.625KW) Crossfeed Motor Power Rating DC 400W/Servo Elevating Motor Power Rating 700W/Servo Total space require (L x W x H) 5660x3500x2350mm(223"x138"x93") Weights Net weight 13500KGS (29700LBS) Gross weight 15000KGS (33000LBS) Total power, Approx (Standard power Rating) 18HP(13.5KW) Packing Dimensions L x W x H 5800x2290x2450mm(229"x91"x99")



ESG-3A 8150ASD

Table Size 810x1550mm(32"x60") Longitudinal Movement of Table 1550mm(61")

Specifications:

MODEL ESG-8150ASD Table Size   810x1550mm(32"x60") Max.grinding length Longitudinal 1550mm(61") Max.grinding width Crosswise 810mm(32") Max. distance from table surface to spindle centerline 720mm;850mm(optional) Standard magnetic chuck size 800x750x2pieces (23.6"x29.5") Longitudinal movement of table Max.Travel hydraulic 1600mm(63") Max.Travel Manual 1650mm(64.9") Max. Travel, Infinitely Variable 5~30m/min Wheelhead Crossfeed Transverse Travel Auto. Transverse Increment (Jog) 1~25mm(0.04"~1") Auto. Constant Feeding Speed 25~280mm/min(1"~11"/min) Max. Auto. Transverse Travel 860mm(33.85") Max. Manual Transverse Tranel 885mm(34.85") MPG per Revolution 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation 0.001mm x1; 0.001mm x2; 0.001mm x4 (optional) Wheelhead vertical infeed (Controlled by Servomotor) Automactic Infeed Rough grinding ASD:0.001~0.04mm/ASD II: 0.001~0.05mm; Finish grinding ASD /ASD II: 0.001~0.009mm Step Feed(Jog) Jogging downfeed:0.001mm(0.25/10000") ASD:0.001~0.04 Jogging step increment :0.001~0.05mm(1~25/10000") ASD II:0.001~0.05 Rapid Travel, Approx 460mm(18")/min Slow Travel Approx 6mm(0.25")/min MPG per Revolution (optional) 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation (optional) 0.001mm x1/ 0.001mm x2 /0.001mm x4 (optional) Grinding spindle drive Speed 60HZ,1750 R.P.M. 50HZ,1450 R.P.M. Power rating Standard:10HP/4P(7.5KW) ; optional:15HP/4P(11.25KW);20HP/4P(15KW); 25HP/4P(18.75KW) Standard grinding wheel Diameter 400mm(16") Width 50mm(2");65mm(2 1/2")(optional) Bore 127mm(5") Hydraulic Motor Power Rating 5HP/6P(5.625KW) Crossfeed Motor Power Rating DC 400W/Servo Elevating Motor Power Rating 700W/Servo Total space require (L x W x H) 4900x3700x2350mm(193"x146"x93") Weights Net weight 13500KGS (29700LBS) Gross weight 15000KGS (33000LBS) Total power, Approx (Standard power Rating) 22HP(13.5KW) Packing Dimensions L x W x H 4600x2290x2450mm(181"x91"x99")



ESG-8200ASD
Table Size 810x2050mm(32"x80") Longitudinal Movement of Table 2050mm(81")
Specifications

MODEL ESG-8200ASD Table Size   810x2050mm(32"x60") Max.grinding length Longitudinal 2050mm(81") Max.grinding width Crosswise 810mm(32") Max. distance from table surface to spindle centerline 720mm;850mm(optional) Standard magnetic chuck size 800x1000x2pieces Longitudinal movement of table Max.Travel hydraulic 2100mm(82.5") Max.Travel Manual 2150mm(84") Max. Travel, Infinitely Variable 5~30m/min Wheelhead Crossfeed Transverse Travel Auto. Transverse Increment (Jog) 1~25mm(0.04"~1") Auto. Constant Feeding Speed 25~280mm/min(1"~11"/min) Max. Auto. Transverse Travel 860mm(33.85") Max. Manual Transverse Tranel 885mm(34.85") MPG per Revolution 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation 0.001mm x1; 0.001mm x2; 0.001mm x4 (optional) Wheelhead vertical infeed (Controlled by Servomotor) Automactic Infeed Rough grinding ASD:0.001~0.04mm/ASD II: 0.001~0.05mm; Finish grinding ASD /ASD II: 0.001~0.009mm Step Feed(Jog) Jogging downfeed:0.001mm(0.25/10000") ASD:0.001~0.04 Jogging step increment :0.001~0.05mm(1~25/10000") ASD II:0.001~0.05 Rapid Travel, Approx 460mm(18")/min Slow Travel Approx 6mm(0.25")/min MPG per Revolution (optional) 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation (optional) 0.001mm x1/ 0.001mm x2 /0.001mm x4 (optional) Grinding spindle drive Speed 60HZ,1750 R.P.M. 50HZ,1450 R.P.M. Power rating Standard:15HP/4P(7.5KW) ; optional:20HP/4P(15KW);20HP/4P(15KW); 25HP/4P(18.75KW) Standard grinding wheel Diameter 400mm(16") Width 50mm(2");65mm(2 1/2")(optional) Bore 127mm(5") Hydraulic Motor Power Rating 5HP/6P(5.625KW) Crossfeed Motor Power Rating DC 400W/Servo Elevating Motor Power Rating 700W/Servo Total space require (L x W x H) 5660x3700x2350mm(223"x146"x93") Weights Net weight 15000KGS (33000LBS) Gross weight 16500KGS (36300LBS) Total power, Approx (Standard power Rating) 22HP(13.5KW) Packing Dimensions L x W x H 5800x2290x2450mm(229"x91"x99")



ESG-8300ASD

Table Size 810x3050mm(32"x120") Longitudinal Movement of Table 3050mm(120")

Specifications:

Table Size   810x3050mm(32"x120") Max.grinding length Longitudinal 3050mm(120") Max.grinding width Crosswise 810mm(32") Max. distance from table surface to spindle centerline 720mm;850mm(optional) Standard magnetic chuck size 800x1000x3pieces Longitudinal movement of table <,/,TD> Max.Travel hydraulic 3100mm(122") Max.Travel Manual 3150mm(124") Max. Travel, Infinitely Variable 5~30m/min Wheelhead Crossfeed Transverse Travel Auto. Transverse Increment (Jog) 1~25mm(0.04"~1") Auto. Constant Feeding Speed 25~280mm/min(1"~11"/min) Max. Auto. Transverse Travel 860mm(33.85") Max. Manual Transverse Tranel 885mm(34.85") MPG per Revolution 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation 0.001mm x1; 0.001mm x2; 0.001mm x4 (optional) Wheelhead vertical infeed (Controlled by Servomotor) Automactic Infeed Rough grinding ASD:0.001~0.04mm/ASD II: 0.001~0.05mm; Finish grinding ASD /ASD II: 0.001~0.009mm Step Feed(Jog) Jogging downfeed:0.001mm(0.25/10000") ASD:0.001~0.04 Jogging step increment :0.001~0.05mm(1~25/10000") ASD II:0.001~0.05 Rapid Travel, Approx 460mm(18")/min Slow Travel Approx 6mm(0.25")/min MPG per Revolution (optional) 0.1mm x1; 0.1mm x2; 0.1mm x4 (optional) MPG per Graduation (optional) 0.001mm x1/ 0.001mm x2 /0.001mm x4 (optional) Grinding spindle drive Speed 60HZ,1750 R.P.M. 50HZ,1450 R.P.M. Power rating Standard:15HP/4P(7.5KW) ; optional:20HP/4P(15KW);20HP/4P(15KW); 25HP/4P(18.75KW) Standard grinding wheel Diameter 400mm(16") Width 50mm(2");65mm(2 1/2")(optional) Bore 127mm(5") Hydraulic Motor Power Rating 5HP/6P(5.625KW) Crossfeed Motor Power Rating DC 400W/Servo Elevating Motor Power Rating 700W/Servo Total space require (L x W x H) 7560x3700x2350mm(298"x146"x93") Weights Net weight 17000KGS (33000LBS) Gross weight 19000KGS (36300LBS) Total power, Approx (Standard power Rating) 22HP(13.5KW) Packing Dimensions L x W x H 7600x2290x2450mm(300"x91"x99") NOTE: The manufacturer reserves the right to modify the design, specifications, mechanisms, etc., to improve the performances of the machine without notice. All the specifications shown above are just for reference.





General Features:

1.HIGH PRECISION CARTRIDGE WHEEL SPINDLE:

High precision cartridge type spindle is supported by two preloaded precision angular contact ball bearings & one NN type Roller bearing and driven by V3 class motor that allow high accurate grinding performance. (618/818 series are driven by 2.0HP motor.)

2.HIGH ANTI-WEAR GUIDE WAYS:

The saddle rests on precision hand-scraped double V ways, and the table rests on precision hand-scraped V and flat ways which coated with "TURCITE-B". These guide ways are equipped with auto lubrication to resist wear of guide ways, plus lasting accuracy and damping.

3.HIGH RIGID CASTING CONSTRUCTION:

Machines are casted with high grade casting iron with heavy walls and reinforced ribs to provide excellent rigidity and damping.

4.ENLARGED COLUMN AND BASE:

Enlarged column and base create high stability and rigidity. The height of column is increased up to 18" (460mm) from table surface to the center line of spindle.

5.AUTO LUBE SYSTEM:

Automatic lubrication system is applied as standard to ensure sufficient lubrication at lead-screws and guide-ways for more longevity.

6.LONGITUDINAL & CROSS DRIVE:

For all models, except 618 & 818 handfeed, the longitudinal movement is driven by hydraulic system; for 2A, 3A, ASD series, the cross movement is driven by motor for more accurate increment feeding.

Precision Spindle (for 614~818) Saddle and table     Indexible table handwheel ·Positioning system(for 614)   ·Auto lubrcation system       ·Cross slice way

Optional Accessores:

Electro Magnetic Chuck Inclinable Permanent Magnetic Chuck Coolant System Dust Collector Coolant and Dust Unit Coolant System With Magnetic Separator Work Lamp Splash Guard Wheel Flange Manual Parallel Dresser Chuck Control With Demagnetizer Precision Vice Punch Former Balancing Stand (Double Line) Roller Type Balancing Stand Digital Readout Micro Crossfeed (614~818) Manual Pulse Generator Permanent Magnetic Chuck Manual Pulse Generator

Standare Accessories: 1.Tool box with tools 5.Grinding Wheel 9.Diamond dresser 2.Wheel extract screw & nut 6.Wheel flange 10.Crossfed Ballscrew 3.Balancing arbor 7.Touch-up paint   4.Levelling screw with blocks 8.Auto lubrication system
