1、SPECIFICATION

2、STANDARD  ACCESSORIES

1、Travel：X450 Y500 Z200
2、Table size：500X450
3、Spindle nose to worktable surface：50~250
4、Max. loading：200kg
5、Spindle：3.0KW24000rpm ER25
6、Max. speed  10m/min
7、Positioning accuracy：0.008/300
8、Repear Positioning accuracy：0.005
9、Motor：3PH 4-wire 7KW
10、Dimensions：1400×1600×1800

1、SYNTEC of CNC system
2、Precision auto instrument on the knife
3、External handwheel
4、A fluid nozzle at a stretch
5、Spindle oil cooler thermostat
6、Coolant tank and pressure pump
7、Loaded knife wrench-1pc，pressure code-1set，Manual-1set，power cord2~5Meter，ER chuck-6pcs

3、OPTIONAL ACCESSORIES

1、FAGOR 8055IA system
2、FAGOR IPOWER system

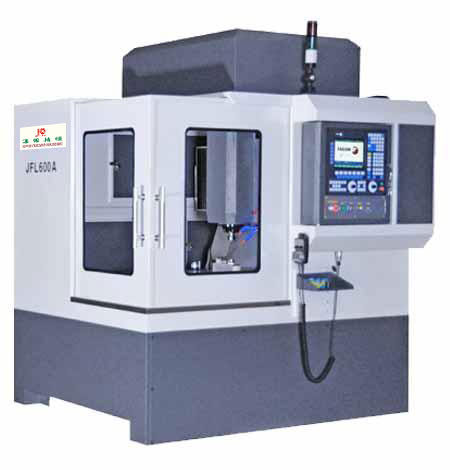

Suitable for high precision mold，has always been stable、high precision and fame JFL600I 2010’ major improvenments, upgrade JFL600A, the three major
selling points for customers to enhance the competitiveness of 20%

　1、SPECIFICATION

2、STANDARD  ACCESSORIES

1、Travel：X530 Y600 Z250
2、Table size：600×500
3、Spindle nose to worktable surface: 80~330
4、Max. loading: 300kg
5、Spindle: 5.5KW 24000RPMER32-20
6、Max. speed 10m/min
7、Positioning accuracy：0.008/300
8、Repear positioning accuracy：0.005
9、Morot: 3PH, 4-wire 10KW
10、Dimensions：1550×1900×2000
11、Machine weight：appox 3.3ton

1、FAGOR 8055IA system
2、AC servo motor in Japan
3、Precision auto instrument on the knife
4、Taiwan tais on silver or intime screw rail
5、External handwheel
6、A fluid nozzle at a  stretch
7、Spindle oil cooler thermostat
8、Coolant tank and pressure pump
9、Loaded knife wrench-1pc，pressure code-1set，manual-1set，power cord 2~5meter，ER chuck-6pcs
　

3、OPTIONAL ACCESSORIES

1、FAGOR 8055 IPO WER system
2、SYNTEC high speed high precision 10A or 10C system
3、4 th axis CNC 150 rotary table with air brake
4、Turntable hydraulic brake
5、Tailstock
6、4 th axis use full closed loop structure
7、Poermill or UG 4 axis programming training
8、4.5KW 24000rpm BT30 auto song cutter spindle (with 1 pc BT30 ER25 high speed shank)

9、6.5KW24000rpm BT30 auto song cutter spindle（with 1 pc BT30ER32 high speed tool holder）

10、7.5KW24000rpm IS30 Taiwan spindle
11、15000rpm BT30 direct mechanical high speed spindle with a handle BT30ER32
12、Additional table
13、20ER20 long arbor
14、X axis 600 travel, become 660A type

15、Graphite machining configuration (single processing program of the graphite)

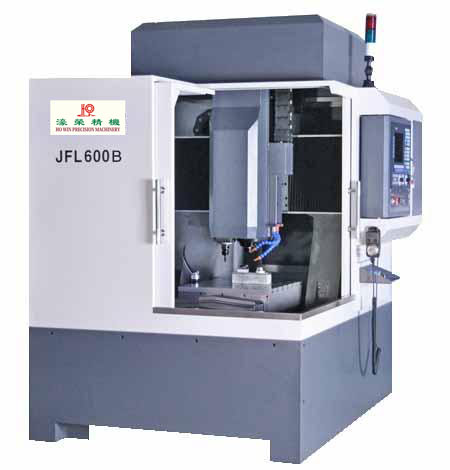

600B Proven through the years，reasonable division of labor，two spindles is more durable，processing more efficient,  reduce the number of clamping,  manpower savings, saving plant area。


　1、SPECIFICATION

2、STANDARD  ACCESSORIES

1、Travel：X600 Y600 Z250
2、Table size：600×500
3、Spindle nose to worktable surface: 60~310
4、Max. loading：300kg
5、Spindle: 5.5KW24000rpm ER32
6、10000rpm BT30 direct mechanical spindle
7、Max. speed 10m/min
8、Positioning accuracy：0.008/300
9、Repear positioning accuracy：0.005
10、Power：3ph 4-wire 12KW
11、Dimensions：1550×1900×2000
12、Machine weight：Appox 3.5ton

1、FAGOR8055 la system
2、AC servo motor in Japan
3、Precision auto instrument on the knife
4、Taiwan tais on silver or intime screw rail
5、External handwheel
6、A fluid nozzle at a stretch
7、Coolant tank and pressure pump
8、Spindle oil cooler thermostat
9、Loaded knife wrench-1pc，pressure code-1set，manuel-1set，power cord 2~5meter，ER chuck-6pcs
10、BT30 ER30 shank-1pc
11、Training exercise machine

3、OPTIONAL ACCESSORIES

1、FAGOR IPOWER system
2、SYNRE of high speed, high precision system
3、Additional table
4、Long arbor

1、SPECIFICATION

2、STANDARD  ACCESSORIES

1、Travel： X680 Y750 Z300
2、Table size：600×750
3、Spindle nose to worktable surface：80~380
4、Max. loading: 500kg
5、Spindle: 5.5KW 24000rpm ER32
6、Max. speed：10m/min
7、Positioning accuracy:0.008/300
8、Power：3ph 4-wire 13KW
9、Dimensions：1750×2000×2300
10、Machine weight：Appox 4.8ton

1、FAGOR 8055IA system
2、AC servo motor in Japan
3、Precision auto instrument on the knife
4、Taiwan tais on silver or intime screw rail
5、External handwheel
6、A fluid nozzle at a stretch
7、Coolant tank and pressure pump
8、Spindle oil cooler thermostat
9、Loaded knife wrench-1pc，pressure code-1set，manual-1set，power cord 2~5meter，ER chuck-6pcs

3、OPTIONAL ACCESSORIES

1、FAGOR IPOWER system
2、Taiwan new generation of high speed high precision system
3、4 th CNC 150 rotary (with air brake)
4、Turntable hydraulic brake
5、Tailstock
6、4 axis use full closed loop structure

7、Poermill or UG 4 aix programming training
8、18000rpm 5.0KW BT30 auto song cutter spindle （with BT30ER25 shank-1pc）
9、Additional table
10、15000rpm BT30 direct mechanical spindle-1pc BT30 ER32 high speed handle
