濠榮機械公司 HO WIN MACHINERY COMPANY

Product name	"HOWIN" Four - column Fast Hydraulic Press
Performance of work table	----
Longitudinal movement table (No paragraph table speed)	----

YCK Series

Product Note：

YCK series falling press type four-column fast hydrualic press
1.General:
The YCK series falling press type four-column fast hydrualic press is one of our main patented products.It is aalways used in metal sheet press-froming and shallow streching in such various industries as hardware,clocks and watches,electrical appliances,glasses,jewelry,arts and crafts,power metallurgy and etc.
2.Characteristics:
a.With advanced design and beautiful appearance .
b.The fixed rotary table has guaranteed the precision in product pressing.
c.With fast speed,high efficiency,low power consumption,and sensitive and reliable operation.
d.It adopts imported hydraulic elements and electrical elements,and is equipped with photoelectric protection device
e.The surface of the piston rod and the column is plated with hard chrome under high frequency ,with good wearability.
3.Optional units:
upper material returning unit,air blowing unit,and electric eye for exhausts
4.We offer customized design according to your specific requirements with best cost-effective ratio.
5.The newest specifications table, please click the following clink;

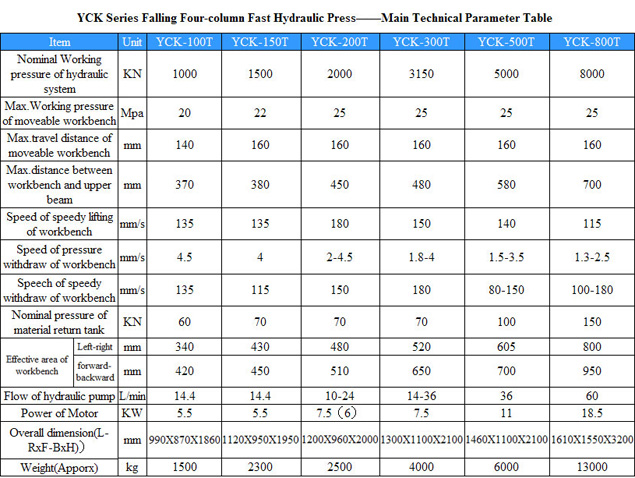

Main Techincal Parameter Table

Y28 Series

Product Note：

Y28 Series Four-column Double-action Hydraulic Machine

1.General:

This series of pressing machines are used to press and form the metal sheet in metal industry,such as the technologies of metal sheet streching,flanging,punching,forming and aligning,as well as for metal cold extruding technology.

2.Characteristics:

a.With fast speed,high efficiency,low power consumption,and sensitive and reliable operation.

b.The major hydraulic elements adopt products from America,Italy or Japan.The major sealing elements adopt the NOK products.

c.It is controlled by imported electrical equipment,equipped with photoelectric protection device.

d.The surface of the piston rod and the column is plated with hard chrome under high frequency,with good wearability.

3.We offer customized design according to your specific requirements with best cost-effective ratio.

4.The newest specifications table, please click the following clink;

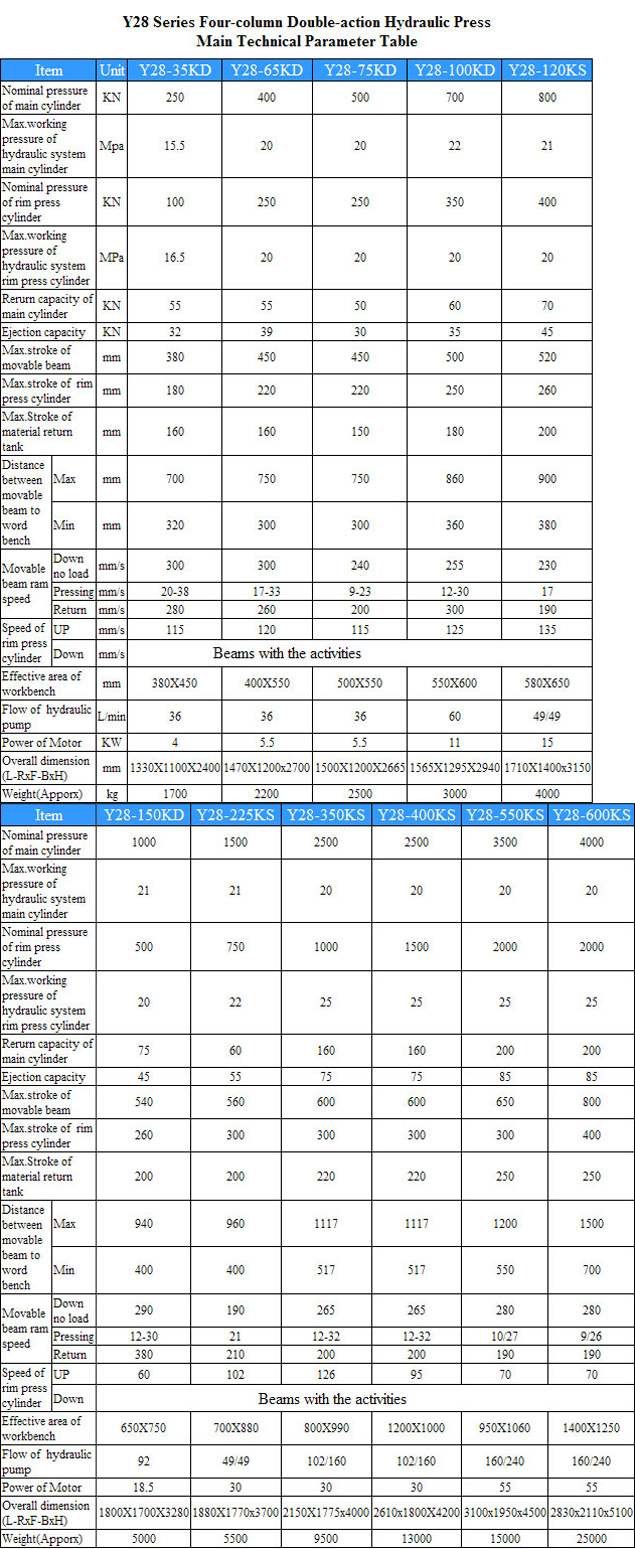

Main Techincal Parameter Table

Y61 Series

Product Note：

Y61 Series Cold Extruding Hydraulic Press

1.General:

This series of hydraulic machines for cold metal extrusion materials, in particular for the automotive industry.

2.Characteristics:

a.a fixed table to ensure the accuracy of product at the time of repression.

b.advanced machine design, pleasing in appearance, fast, easy to operate.

c.with a trip the two controlling mode of pressure control and high accuracy.

d.imported hydraulic components with electrical components, durable.

e.optoelectronic protection devices equipped with ultra-trip protection.

f.the surface of the piston rod with a high near post, chrome-plated hardware, a good wear resistance.

3.We offer customized design according to your specific requirements with best cost-effective ratio.

4.Main technical parameter table:please click the following link to get;

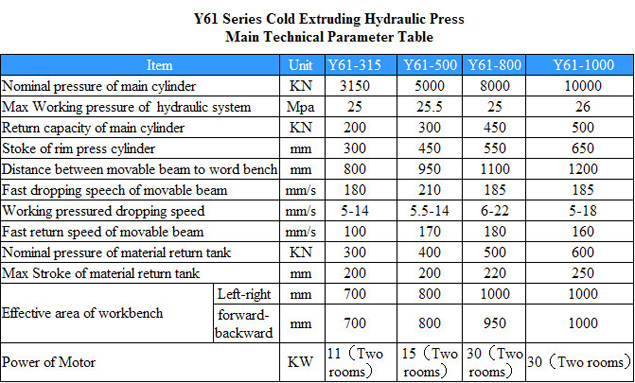

Main Techincal Parameter Table

YSK Series

Product Note：

YSK Series Ascending Four Column Fast Hydraulic Press

1.Overview:

This series of hydraulic machines are used in a wide range of industries, such as hardware, watches, electrical appliances, glasses, jewelry, handicrafts,powder metallurgy and so on.

There are three types for choosing: general type, A-type (with material returning function), E-type (with fast idle stroke, slow close to the production function), F-type (Both fuction with type A and type E).

2.Characteristics:

a, high speed, high efficiency, low energy consumption and steady work.

b, imported hydraulic components and electrical components, durable.

c, equipped with photoelectric protection device and ultra-trip protection.

d, high column near the surface, chrome-plated hardware, look for good wear resistance to high precision.

3.We offer customized design according to your specific requirements with best cost-effective ratio.

4.Main technical parameter table:please click the link to get:

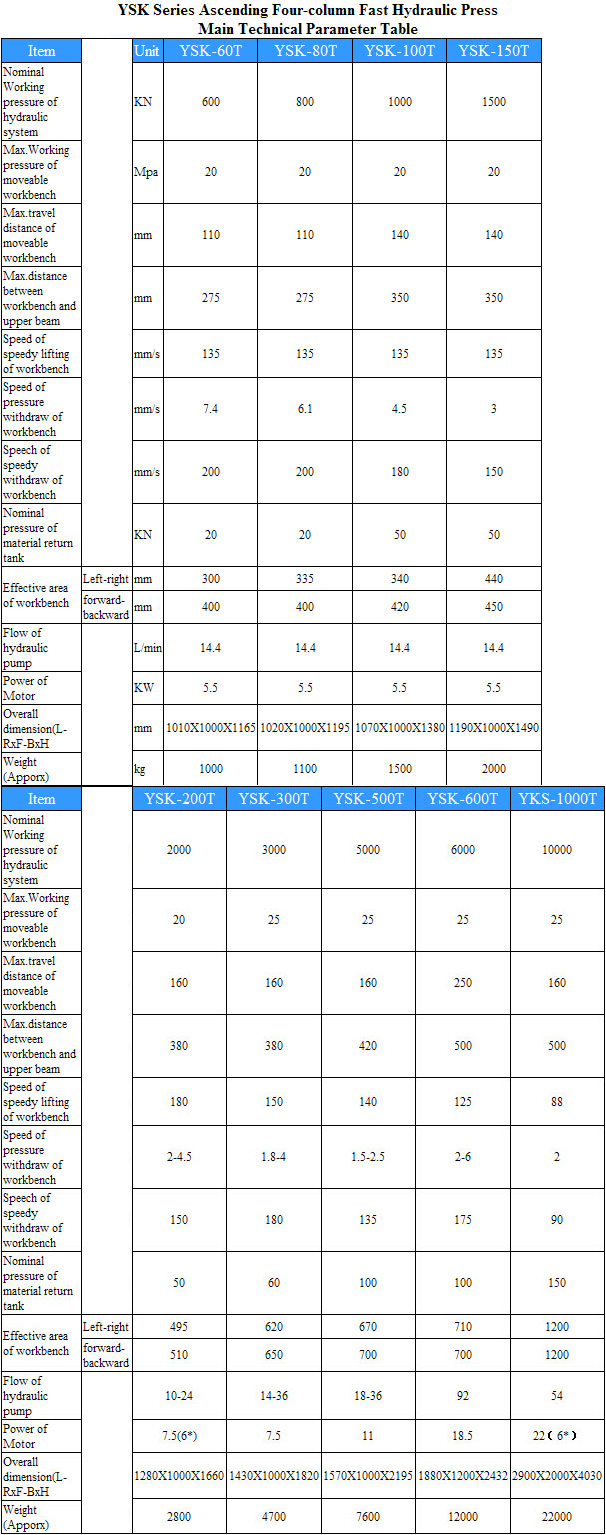

Main Techincal Parameter Table

Y34 Series

Product Note：

Y34 Series Frame Type Fast Hydraulic Press

1.Overview:

This series of hydraulic machines are used in metal, watches, electronic watches, and glasses, jewelry, handicrafts, powder Metallurgical and other industries. There are three types: general type, A-type (Equipt materials returning fuction back feed function), E-type (with

fast speed idle stroke, slow move close to the functional parts), F-type (Combined with tye-A and type-E),the type-F is suitable for pressing-form the badge.

2.Characteristics:

a.Using integral steel welding structure, good rigidity, and high compressive strength.

b.Using the designing of overall structure, saving the space,easy for installing.

c.Equipt wuth Imported hydraulic components and electrical components,good durability.

e.Equipt with photoelectric protection device,safety protection function and overtravel protection function.

3.We offer customized design according to your specific requirements with best cost-effective ratio.

4.The newest specifications please click the following link to get;

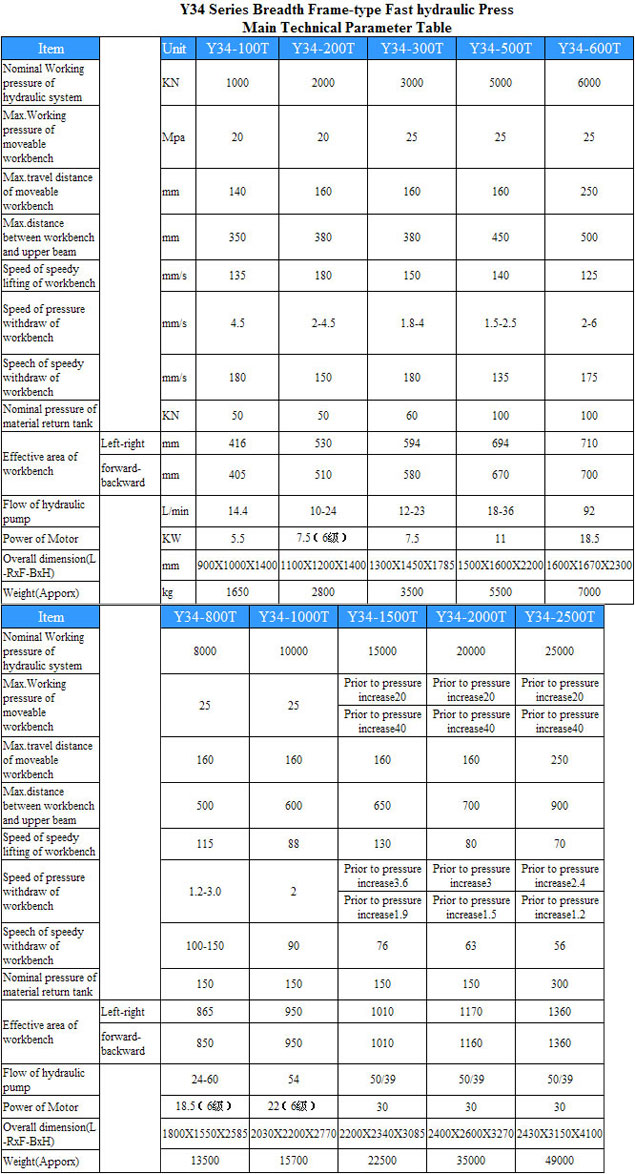

Main Techincal Parameter Table
